Convair
XC-99
.
Previous U.S. MILITARY Next

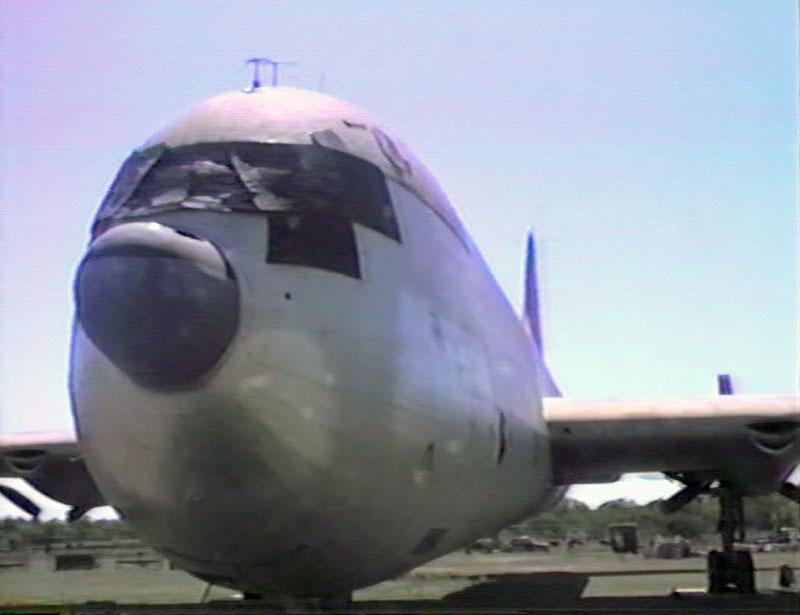

Photo: Robert Deering 1986
Kelly AFB (SKF)
San Antonio, Texas

The Convair XC-99, AF Ser. No. 43-52436, is a prototype heavy cargo aircraft built by Convair for the United States Air Force. It was the largest piston-engined land-based transport aircraft ever built, and was developed from the Convair B-36 Peacemaker bomber, sharing the wings and some other structures with it. The first flight was on 24 November 1947 in San Diego, California, and after testing it was delivered to the Air Force on 26 May 1949. The Convair Model 37 was a planned civil passenger variant based on the XC-99 but was not built.

Design capacity of the XC-99 was 100,000 lb (45,000 kg) of cargo or 400 fully equipped soldiers on its double cargo decks. A cargo lift was installed for easier loading. The engines face rearward in a pusher configuration.

In July 1950, the XC-99 flew its first cargo mission, "Operation Elephant." It transported 101,266 pounds (45,933 kg) of cargo, including engines and propellers for the B-36, from San Diego to Kelly Air Force Base in San Antonio, Texas, a record it would later break when it lifted 104,000 lb (47,200 kg) from an airfield at 5,000 ft (1,500 m) elevation. In August 1953, the XC-99 would make its longest flight, 12,000 mi (19,000 km), to Rhein-Main Air Base, Germany, by way of Kindley Air Force Base, Bermuda and Lajes Field in the Azores. It carried more than 60,000 lb (27,000 kg) each way. It attracted much attention everywhere it flew.

The US Air Force determined that it had no need for such a large, long-range transport at that time, and no more were ordered. The sole XC-99 served until 1957, including much use during the Korean War. It made twice weekly trips from Kelly AFB to the aircraft depot at McClellan Air Force Base, California, transporting supplies and parts for the B-36 bomber while returning by way of other bases or depots making pick-ups and deliveries along the way. During its operational life, the XC-99 logged over 7,400 hours total time, and transported more than 60 million pounds (27,000 metric tons) of cargo. The aircraft made its last flight on 19 March 1957, landing at Kelly Air Force Base, where it would remain for the next 47 years. The then-United States Air Force Museum at Wright-Patterson Air Force Base near Dayton, Ohio, requested that the aircraft be flown there for display, but the Air Force refused due to the $7,400 cost of the flight.

 The aircraft was put on display at Kelly AFB near San Antonio, Texas, in 1957. Deterioration of the airframe due to the high magnesium content was beyond local abilities to address. The aircraft was later moved to a grassy field near the base and in 1993 the USAF moved it back to the Kelly AFB. In 1995, Kelly AFB was identified for closure via BRAC, although some portions would remain under USAF control as the Kelly Field Annex to adjacent Lackland AFB, it was deemed that a new location be identified for the XC-99.

Disassembly of the aircraft began at Kelly Field in April 2004. and the airframe was moved in pieces from Kelly to the National Museum of the United States Air Force (NMUSAF) at Wright-Patterson Air Force Base. By the summer of 2008, the transfer was complete and the parts were lying outside the museum. The aircraft had continued to suffer additional corrosion during its years in Texas and was found to be in worse condition than expected, with the restoration task being beyond the resources of the museum in a realistic time scale. Some major components such as the wing spar would need to be completely replaced.

The NMUSAF's plans for the restoration and display of the XC-99 are displayed in a case with a 1:72 scale model made by Lt Col Howard T. Meek, USAF (Ret).

In an effort to preserve the aircraft for future restoration, the XC-99 was later moved incrementally to the 309th Aerospace Maintenance and Regeneration Group (309 AMARG) storage facility at Davis–Monthan Air Force Base, in Tucson, Arizona, where it will remain, in an area containing other aircraft belonging to the NMUSAF until the museum is able to restore it. In 2014, Lieutenant General John L. Hudson, USAF (Ret), director of the NMUSAF said that there would be insufficient resources for restoration for the foreseeable future.

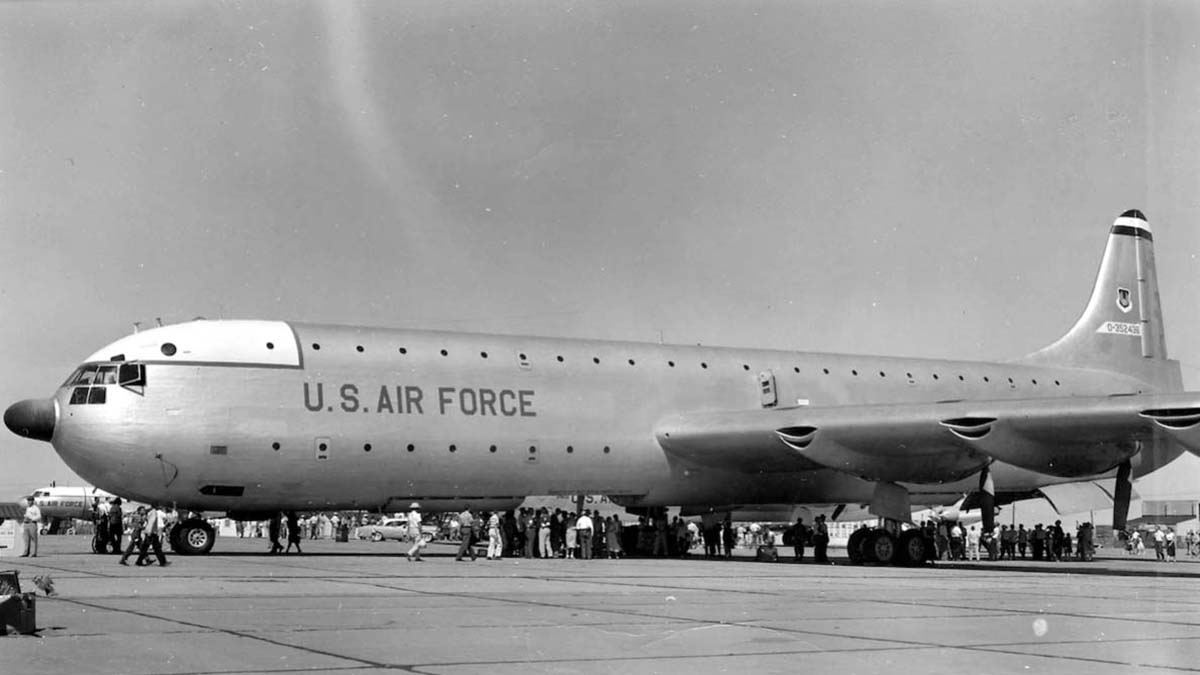

USAF Photo
SPECIFICATIONS: PERFORMANCE:
Span:  230 ft. Maximum speed:  307 mph
Length:  1862 ft. 6 in. Cruising speed:
Height:  57 ft. 6 in. Range:  8,100 miles
Empty Weight:  135,232 lbs.

Service ceiling:

Gross Weight:  265,000 lbs.
Crew:  5
Engines:  6 x Pratt & Whitney R-4360-41 Wasp 28 cylinder radial piston engines, 3,500 hp each.
Armament: None

SOURCE:  Wikipedia

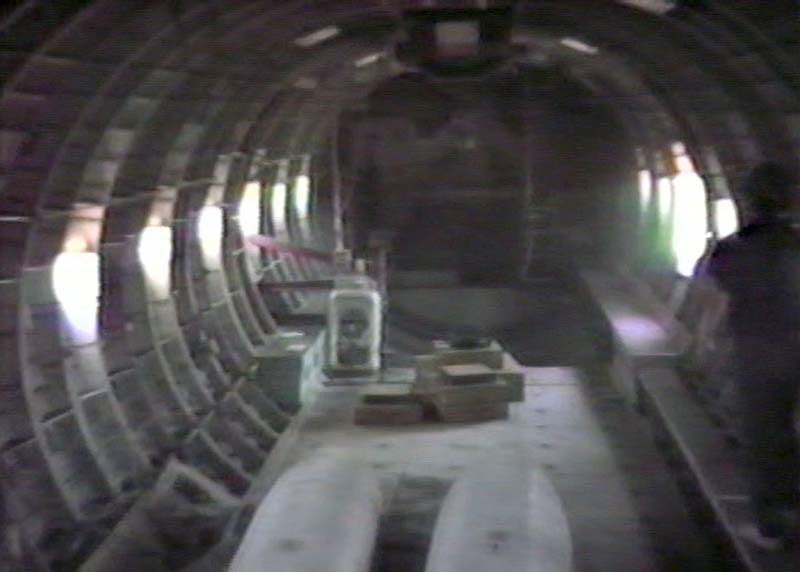

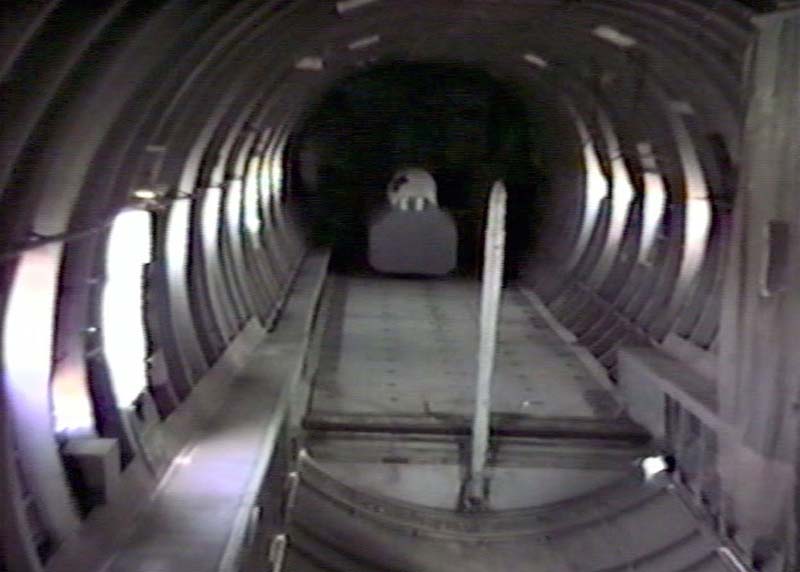

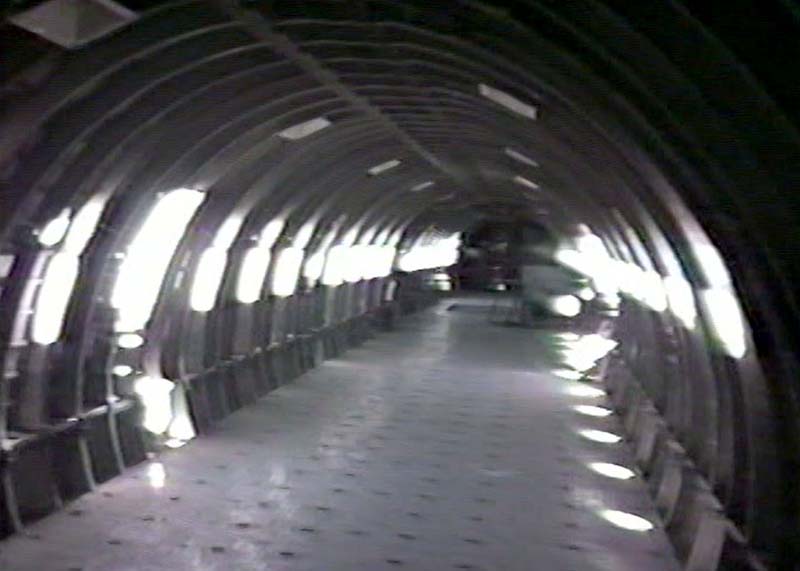

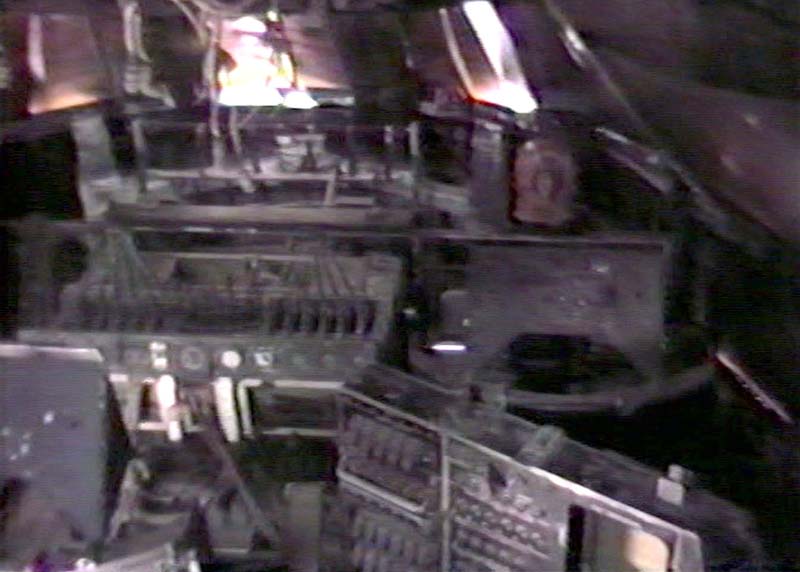

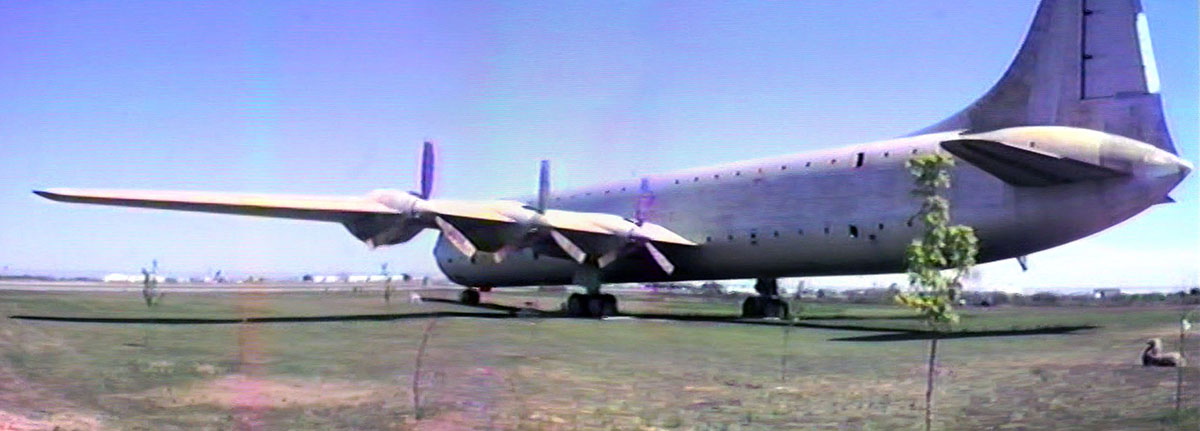

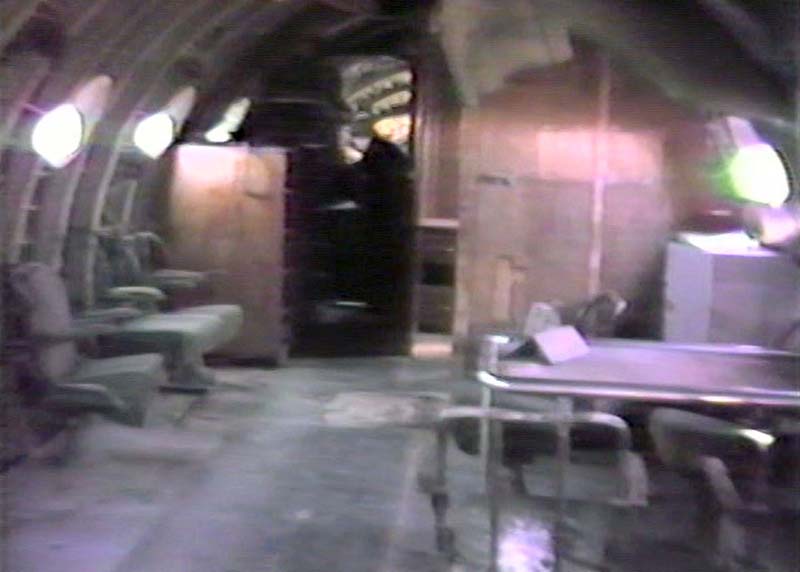

The images below and at the top of the page were captured from a VHS video tape from 1986.
