North American
XB-70
Valkyrie
Previous U.S. MILITARY Next

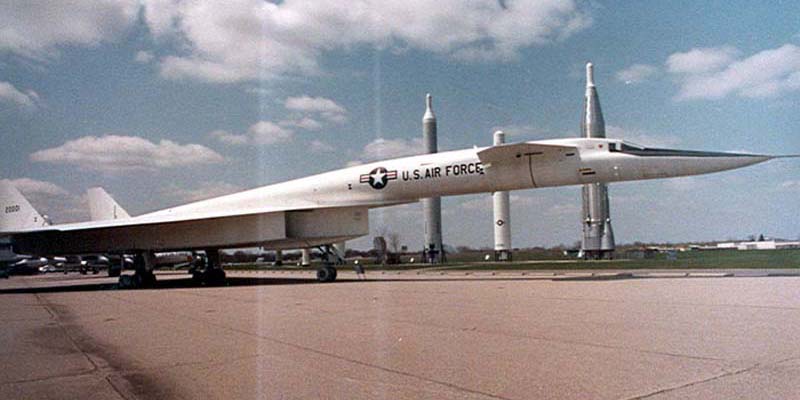

Photo: Robert Deering 1985
National Museum of the USAF
Wright-Patterson AFB (FFO)

Dayton, Ohio
The XB-70, one of the world's most exotic airplanes, was conceived for the Strategic Air Command in the 1950s as a high-altitude bomber that could fly three times the speed of sound (Mach 3). Because of fund limitations, only two were built, not as bombers, but as research aircraft for the advanced study of aerodynamics, propulsion and other subjects related to large supersonic aircraft.

The Valkyrie was built largely of stainless-steel honeycomb sandwich panels and titanium. It was designed to make use of a phenomenon called "compression lift," achieved when the shock wave generated by the airplane flying at supersonic speeds supports part of the airplane's weight. For improved stability at supersonic speeds, the Valkyrie could droop its wingtips as much as 65 degrees.

The No. 1 XB-70 made its initial flight on Sept. 21, 1964, and achieved Mach 3 flight on Oct. 14, 1965. The No. 2 airplane first flew on July 17, 1965, but on June 8, 1966, it crashed following a mid-air collision. The No. 1 airplane continued in its research program until flown to the museum on Feb. 4, 1969.
SPECIFICATIONS: PERFORMANCE:
Span: 105 ft
Length:  185 ft. 10 in. without boom; 192 ft. 2 in. with boom
Height:  30 ft. 9 in
Empty Weight:

Gross Weight:  534,700 lbs. loaded
Crew:
Maximum speed: 2,056 mph (Mach 3.1) at 73,000 ft.
Cruising speed: 2,000 mph (Mach 3.0) at 72,000 ft.
Range: 4,288 miles
Service ceiling: 77,350 ft.
Engines:  Six General Electric YJ-93s of 30,000 lbs. thrust each (with afterburner)
Armament:   None

SOURCE: National Museum of the United States Air Force
