North American
X-15
#
Previous U.S. MILITARY Next

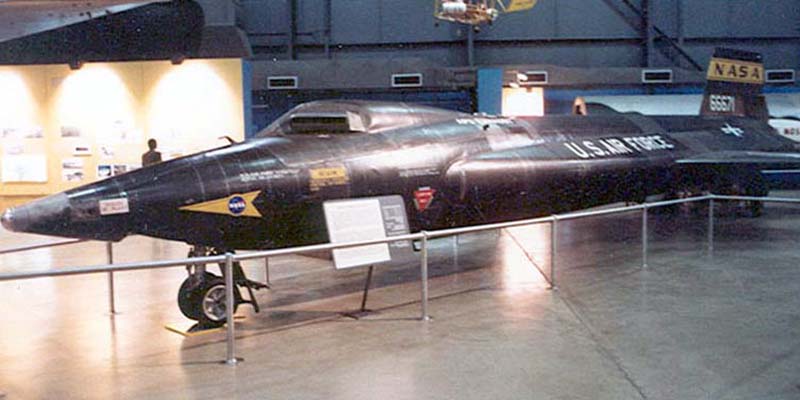

Photo: Robert Deering 1985
National Museum of the USAF
Wright-Patterson AFB (FFO)

Dayton, Ohio
The X-15, designed to provide data on material and human factors of high-speed, high-altitude flight, made the first manned probes into the lower edges of space. It was built for speeds of up to 4,000 mph and altitudes of 50 miles, but these goals were exceeded on numerous occasions. Several X-15 pilots earned "astronaut" rating by attaining altitudes above 50 miles. The X-15 flight program contributed significantly to the Mercury, Gemini and Apollo projects.

The X-15 was carried aloft by a B-52 and was released at about 45,000 feet and 500 mph. Its rocket engine then fired for the first 80-120 seconds of flight. The remainder of the 10-11 minute flight was powerless and ended with a 200 mph glide landing on a dry lake bed.

The first powered X-15 flight was made on Sept. 17. 1959, and 199 flights were made between 1959 and 1968 by the three X-15s that were built. The No. 1 X-15 is at the Smithsonian Institution's National Air and Space Museum, and the No. 3 X-15 was destroyed in a crash. The No. 2 aircraft was retired to the National Museum of the United States Air Force in October 1969.

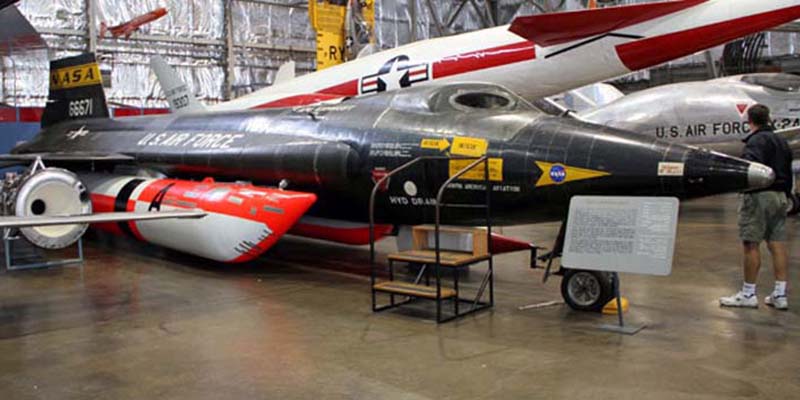

Photo: Robert Deering 10/18/2012
National Museum of the USAF
Wright-Patterson AFB (FFO)

Dayton, Ohio
SPECIFICATIONS: PERFORMANCE:
Span: 22 ft. 5 in.
Length:  52 ft. 5 in.
Height:  14 ft.
Empty Weight:

Gross Weight:  56,132 lbs. (at launch with ram jet test engine)
Crew:
Engines:  Reaction Motors XLR99 rocket engine of over 50,000 lbs. thrust
Armament:
None
Maximum speed: 4,520 mph (unofficial record)
Cruising speed:
Range:
Over 250 miles (flight path distance)
Service ceiling:
354,200 ft. (unofficial record by X-15 No. 3)
SOURCE: National Museum of the United States Air Force
