North American Rockwell
OV-10
Bronco
Previous U.S. MILITARY Next

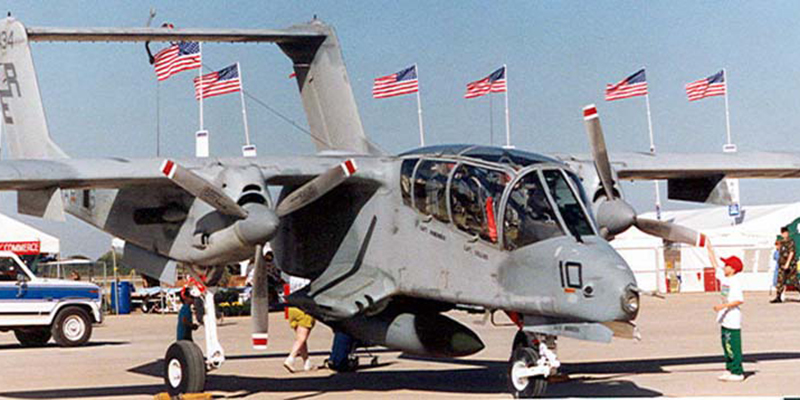

Photo: Robert Deering 1991
Alliance Airport (AFW)
Fort Worth, Texas
In September 1967 Rockwell Standard acquired and merged with North American Aviation to form North American Rockwell.  It then purchased or merged with Miehle-Goss-Dexter, the largest supplier of printing presses, and in 1973 acquired Collins Radio, a major avionics supplier. Finally, in 1973 the company merged with Rockwell Manufacturing to form Rockwell International.   The OV-10 was introduced in 1969 under the North American Rockwell banner.

The OV-10A was a twin-turboprop short takeoff and landing aircraft conceived by the U.S. Marine Corps and developed under a U.S. Air Force, Navy and Marine Corps tri-service program. The first production OV-10A was ordered in 1966, and its initial flight took place in August 1967.


The Bronco's missions included observation, forward air control, helicopter escort, armed reconnaissance, gunfire spotting, utility and limited ground attack. The USAF, however, acquired the Bronco primarily as a forward air control (FAC) aircraft. Adding to its versatility is a rear fuselage compartment with a capacity of 3,200 pounds of cargo, five combat-equipped troops or two litter patients and a medical attendant.

The first USAF OV-10As destined for combat arrived in Vietnam in July 1968. A total of 157 OV-10As were delivered to the USAF before production ended in April 1969.

The aircraft on display came to the museum in October 1991 and is painted as it appeared when it served in Southeast Asia.

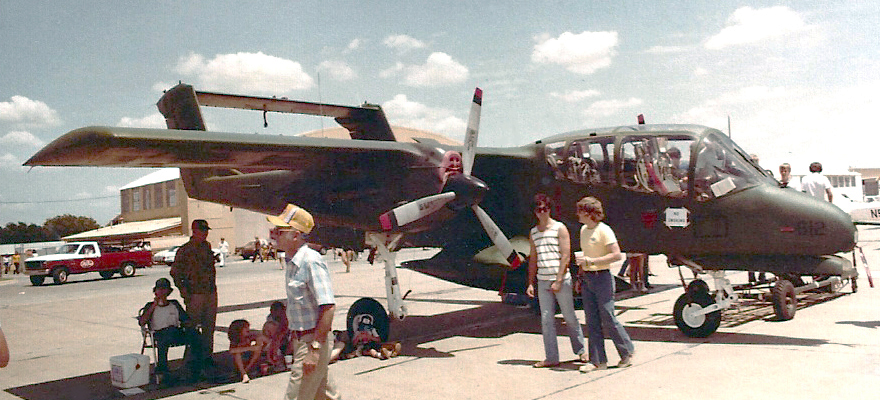

Photo: Robert Deering 1981
Carswel AFB (FWH)
Fort Worth, Texas

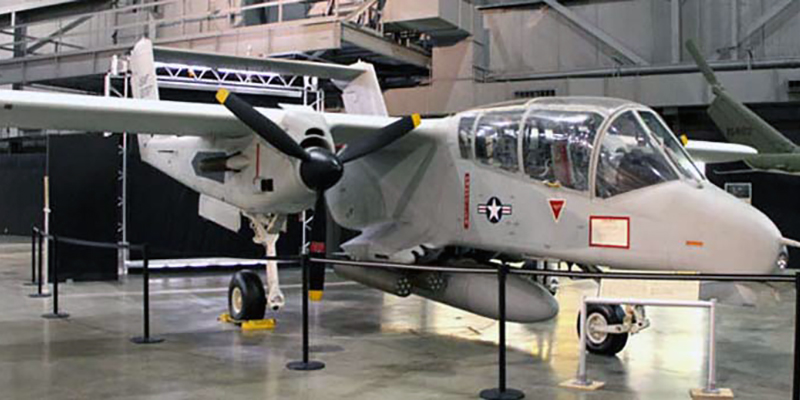

Photo: Robert Deering 10/18/2012
National Museum of the USAF
Wright-Patterson AFB (FFO)

Dayton, Ohio

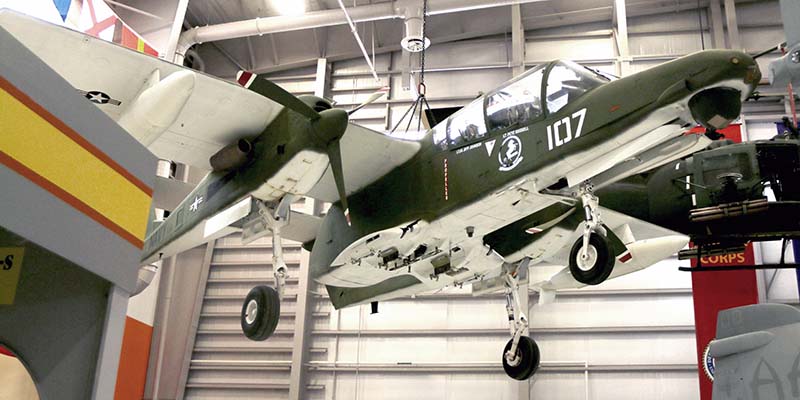

Photo: Robert Deering 4/18/2015
National Museum of Naval Aviation
NAS Pensacola (NPA)

Pensacola, FloridaSW

SPECIFICATIONS: PERFORMANCE:
Span: 40 ft.
Length:  41 ft. 7 in.
Height:  15 ft. 1 in.
Empty Weight:

Gross Weight:  14,444 lbs. maximum
Crew:
Maximum speed:  281 mph
Cruising speed: 223 mph
Range: 1,240 miles
Service ceiling: 26,000 ft.
Engines: Two Garrett-AiResearch T76 turboprops of 715 shaft hp each
Armament: Four M-60C 7.62mm machine guns in fuselage, plus 3,600 lbs. of external stores

SOURCE: National Museum of the United States Air Force
