North American
O-47
#
Previous U.S. MILITARY Next

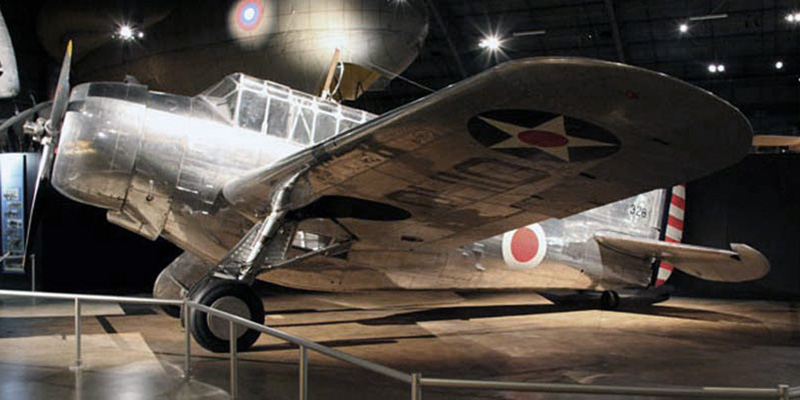

Photo: Robert Deering 10/18/2012
National Museum of the USAF
Wright-Patterson AFB (FFO)

Dayton, Ohio
In 1934 North American Aviation developed the O-47 to replace the O-19 and O-38 observation biplanes. Larger and heavier than most preceding observation aircraft, its crew of three sat in tandem under the long canopy. Since the wings restricted downward observation and photography, North American put windows in the aircraft's deep belly. The U.S. Army Air Corps ordered 174 O-47s in 1937, and National Guard units received 93 of them. In 1938 the Army ordered 74 O-47Bs, which had a redesigned engine cowling for better cooling, a more powerful engine, and improved radio equipment.

Training maneuvers in 1941 demonstrated the O-47's shortcomings. Lighter airplanes proved more capable of operating with ground troops, and fighters and twin-engine bombers showed greater ability to perform reconnaissance and photographic duties. Therefore, the Army relegated the O-47 to towing targets or to flying coastal and antisubmarine patrols.
SPECIFICATIONS: PERFORMANCE:
Span: 46 ft. 4 in.
Length:   33 ft. 3 in.
Height:  13 ft. 9 in.
Empty Weight:

Gross Weight:
Crew: 3
Maximum speed: 227 mph
Cruising speed: 200 mph
Range: 840 miles
Service ceiling:  24,100 ft.
Engines: Wright R-1820 of 1,060 hp
Armament: One fixed forward-firing .30-cal. machine gun and one flexible .30-cal. machine gun in rear cockpit

SOURCE:  National Museum of the United States Air Force
