| Lockheed | ||||||||||||||||||||||
|
||||||||||||||||||||||
|
C-130 Hercules
|
||||||||||||||||||||||
%20(8X4).jpg) |
||||||||||||||||||||||
|

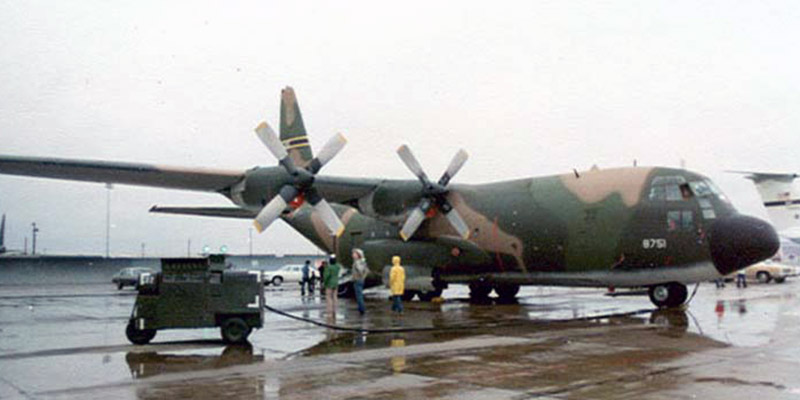

Photo: Robert
Deering 1980 Carswell AFB (FWH) Fort Worth, Texas |
||||||||||||||||||||||
|
||||||||||||||||||||||
|
The versital C-130 has been in service with the U. S. Air Force, Navy, Marine, Corps, and Coast Guard. The C-130 was originally designed as an assault transport capable of operating from unpaved, hastily prepared airstrips. On Aug. 23, 1954, the Hercules made its first flight, and by 1976 more than 1,200 C-130s had been ordered, including ones equipped for radar weather mapping and reconnaissance, mid-air space capsule recovery, search and rescue, ambulance service, drone launching, and mid-air refueling of helicopters. The C-130 could transport up to 92 combat troops and their gear or 45,000 pounds of cargo. Where facilities were inadequate, the Hercules could deliver its cargo by parachute or by low altitude ground-cable extraction without landing. Twenty-eight C-130s were converted to side-firing gunships, primarily for night attacks against ground targets. There are more than 40 versions of the Hercules, and it is widely used by more than 50 nations. Mission The C-130 Hercules primarily performs the tactical portion of the airlift mission. The aircraft is capable of operating from rough, dirt strips and is the prime transport for airdropping troops and equipment into hostile areas. The C-130 operates throughout the U.S. Air Force, serving with Air Mobility Command, Air Force Special Operations Command, Air Combat Command, U.S. Air Forces in Europe, Pacific Air Forces, Air National Guard and the Air Force Reserve Command, fulfilling a wide range of operational missions in both peace and war situations. Basic and specialized versions of the aircraft airframe perform a diverse number of roles, including airlift support, Antarctic ice resupply, aeromedical missions, weather reconnaissance, aerial spray missions, firefighting duties for the U.S. Forest Service and natural disaster relief missions. Features Using its aft loading ramp and door, the C-130 can accommodate a wide variety of oversized cargo, including everything from utility helicopters and six-wheeled armored vehicles to standard palletized cargo and military personnel. In an aerial delivery role, it can airdrop loads up to 42,000 pounds or use its high-flotation landing gear to land and deliver cargo on rough, dirt strips. The flexible design of the Hercules enables it to be configured for many different missions, allowing one aircraft to perform the role of many. Much of the special mission equipment added to the Hercules is removable, allowing the aircraft to return to its cargo delivery role if desired. Additionally, the C-130 can be rapidly reconfigured for the various types of cargo such as palletized equipment, floor-loaded material, airdrop platforms, container delivery system bundles, vehicles and personnel or aeromedical evacuation. The C-130J is the latest addition to the C-130 fleet and will replace aging C-130Es. The C-130J incorporates state-of-the-art technology, which reduces manpower requirements, lowers operating and support costs, and provides life-cycle cost savings over earlier C-130 models. Compared to older C-130s, the J model climbs faster and higher, flies farther at a higher cruise speed, and takes off and lands in a shorter distance. The C-130J-30 is a stretch version, adding 15 feet to the fuselage, increasing usable space in the cargo compartment. C-130J/J-30 major system improvements include advanced two-pilot flight station with fully integrated digital avionics, color multifunctional liquid crystal and head-up displays and state-of-the-art navigation that includes a dual inertial navigation system and GPS. The aircraft also features fully integrated defensive systems, low-power color radar, digital moving map display, new turboprop engines with six-bladed all-composite propellers and a digital auto pilot. The C-130J/J-30 also includes improved fuel, environmental and ice-protection and an enhanced cargo-handling system. Background Four decades have elapsed since the Air Force issued its original design specification, yet the remarkable C-130 remains in production. The initial production model was the C-130A, with four Allison T56-A-11 or -9 turboprop engines. A total of 219 were ordered and deliveries began in December 1956. The C-130B introduced Allison T56-A-7 turboprop engines and the first of 134 entered Air Force service in May 1959. Introduced in August of 1962, the 389 C-130Es that were ordered using the same Allison T56-A-7 engine, but adding two 1,290 gallon external fuel tanks and an increased maximum takeoff weight capability. June 1974 introduced the first of 308 C-130Hs with the more powerful Allison T56-A-15 turboprop engine. Nearly identical to the C-130E externally, the new engine brought major performance improvements to the aircraft. The latest C-130 to be produced, the C-130J, entered the inventory in February 1999. With the noticeable difference of a six-bladed composite propeller coupled to a Rolls-Royce AE2100D3 turboprop engine, the C-130J brings substantial performance improvements over all previous models. The C-130J-30, a stretch version with a 15-foot fuselage extension, increases the capabilities even more. To date, the Air Force has taken delivery of 77 C-130J aircraft from Lockheed-Martin Aeronautics Company. |
||||||||||||||||||||||
|
||||||||||||||||||||||
VARIANTS:
|
||||||||||||||||||||||
%20(8X4).jpg)
%20(1)%20(8X4).JPG)
%20(2)%20(8X4).JPG)
%20(8X4).jpg)
%20(8X4).jpg)
