Lockheed
KC-130
Hercules
Previous U.S. MILITARY Next

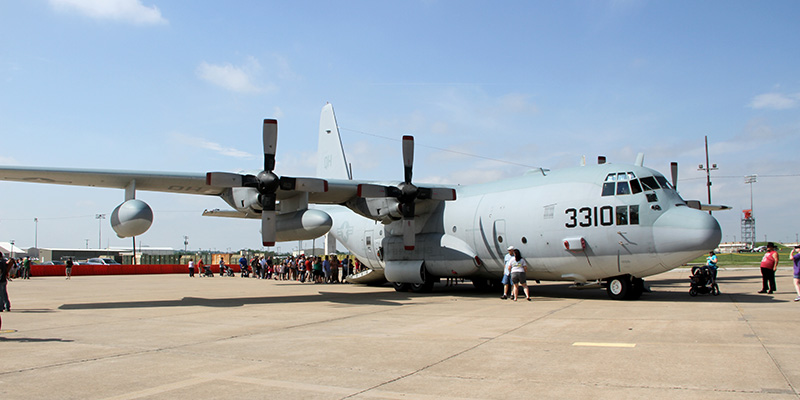

Photo: Robert Deering 4/26/2014
NAS Fort Worth JRB (NFW)
Fort Worth, Texas
The Lockheed Martin KC-130 is the basic designation for a family of the extended-range tanker version of the C-130 Hercules transport aircraft modified for aerial refueling. The KC-130J is the latest variant operated by the United States Marine Corps, with 38 delivered out of 47 ordered. It replaced older KC-130F and KC-130R variants, while USMC reserve units still operate 28 KC-130T aircraft.

Development

The KC-130F made its first test flight in January 1960 as the GV-1 under the old Navy designation system. First entering service in 1962, the KC-130F was designed to undertake aerial refueling missions in support of USMC aircraft. It was developed from the Lockheed C-130 Hercules.

The newest Hercules, the KC-130J, shares 55 percent of the same airframe as preceding models, but in fact is a greatly improved airplane. It is based on the Lockheed Martin C-130J Super Hercules and provides significant increases in operational capability and performance margins over preceding KC-130F/R aircraft. Additionally, The KC-130J reduces cost of ownership through system reliability and reduced maintenance man-hours per flight hour.

The new HC-130J combat rescue tanker and MC-130J special operations tanker are both derived from a KC-130J baseline.

Technological development has led to the incorporation of interior/exterior night vision lighting, night vision goggle head-up displays, global positioning system, and jam-resistant radios. Some KC-130s are also equipped with defensive electronic and infrared countermeasures systems.

Design

The KC-130 is a multi-role, multi-mission tactical tanker/transport which provides the refueling support required by the USMC for its aircraft. This versatile asset provides in-flight refueling to both tactical aircraft and helicopters within a 500-nautical-mile (930 km) operating radius, as well as rapid ground refueling when required. Additional tasks performed are aerial delivery of troops and cargo, emergency resupply into unimproved landing zones within the objective or battle area, emergency medical evacuation, tactical insertion of combat troops and equipment, and evacuation missions.

KC-130J

The KC-130J offers a 57,500-pound fuel offload capacity using wing and external tanks while in the air. When more fuel is needed, an additional 24,392 pounds of fuel can be offloaded from a specially configured internal fuselage 3,600-gallon aluminum fuel tank. The system also functions without the fuselage tank, so the cargo compartment can be used for cargo on the same mission, giving the aircraft even greater flexibility.

The aircraft is ready to fuel fixed or rotary-wing aircraft using the standard probe and drogue. The two wing-mounted hose and drogue refueling pods (made by Sargent Fletcher) can each transfer up to 300 gallons per minute to two aircraft simultaneously allowing for rapid cycle times of multiple-receiver aircraft formations (a typical tanker formation of four aircraft in less than 30 minutes).

The KC-130J also provides for rapid ground refueling of helicopters, vehicles and fuel caches. The aircraft has a unique propeller feathering feature (known as “hotel mode”) which can slow (at 25% rotation speed) the propellers while the turbines continue to run and pump fuel. This reduction of the propellers' speed helps to eliminate prop wash behind the KC-130J. This allows ground forces to operate in relative calm while the aircraft offloads up to 600 gallons (4,018 pounds) per minute.

The U.S. Marine Corps has chosen the KC-130J tanker to replace its aging KC-130F tanker fleet. The new KC-130J offers increased utility and much needed improvement in mission performance. As a force multiplier, the J-model tanker is capable of refueling both fixed- and rotary-wing aircraft as well as conducting rapid ground refueling. The refueling speed envelope has been widened from 100 to 270 knots (500 km/h) indicated airspeed, offering more capability and flexibility.[4] Offload rates per refueling pod can be up to 300 gallons per minute simultaneously. The KC-130's offload is significantly greater than previous Hercules tankers. As an example, at 1,000 nautical miles (1,852 km), the fuel offload is well over 45,000 pounds (20,412 kg).

SPECIFICATIONS: (C-130J) PERFORMANCE:
Span:  32 ft 7 in (40.41 m) Maximum speed:  362 knots (417 mph, 671 km/h)
Length:  97 ft 9 in, 29.79 m (for C-130J-30: 112 ft, 9 in, 34.69 m) Cruising speed:  348 kn (400 mph, 643 km/h)
Height:  38 ft 10 in (11.84 m) Range:  2,835 nmi (3,262 mi, 5,250 km)
Empty Weight:  75,562 lb (34,274 kg) Service ceiling:  28,000 ft (8,615 m)
Gross Weight:  175,000 lb (79,378 kg)
Crew:  4 (two pilots,one crew chief and one loadmaster are minimum crew)
Engines:  4 × Rolls-Royce AE 2100D3 turboprop, 4,637 shp (3,458 kW) each
Armament:  None

SOURCE:  Wikipedia
