Lockheed
C-5
Galaxy
Previous U.S. MILITARY Next

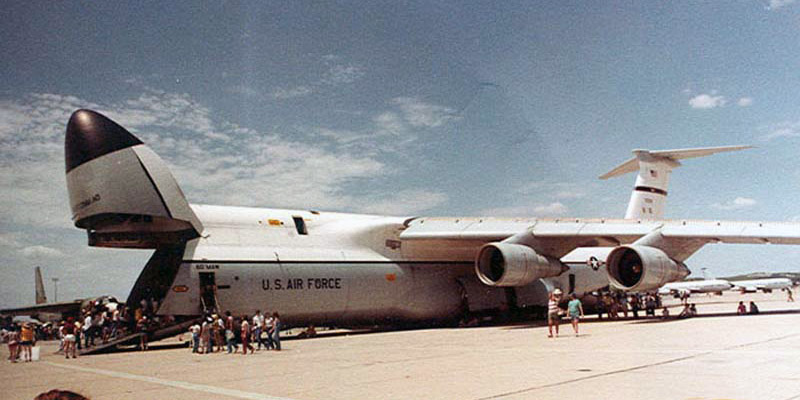

Photo: Robert Deering 1981
Carswell AFB (FWH)
Fort Worth, Texas

The gigantic C-5 Galaxy, with its tremendous payload capability, provides the Air Mobility Command intertheater airlift in support of United States national defense. The C-5, the C-17 Globemaster III and the C-141 Starlifter are partners of AMC's strategic airlift concept. The aircraft carry fully equipped combat-ready military units to any point in the world on short notice then provide field support required to help sustain the fighting force.

The C-5 is one of the largest aircraft in the world. It can carry outsize and oversize cargo intercontinental ranges and can take off or land in relatively short distances. Ground crews can load and off load the C-5 simultaneously at the front and rear cargo openings. Other features of the C-5 are:

  • Able to take off fully loaded within 8,300 feet (2,530 meters) and land within 4,900 feet (1,493 meters).
  • High flotation landing gear with 28 wheels sharing the weight. Nose and aft doors that open the full width and height of the cargo compartment to permit faster and easier loading.
  • A "kneeling" landing gear system that permits lowering of the parked aircraft so the cargo floor is at truck-bed height or to facilitate vehicle loading and unloading.
  • Full width drive-on ramps at each end for loading double rows of vehicles.
  • A system that records and analyzes information and detects malfunctions in more than 800 test points.
  • The Galaxy carries nearly all of the Army's combat equipment, including such bulky items as its 74-ton mobile scissors bridge, from the United States to any theater of combat on the globe.

The C-5 is similar in appearance to its smaller sister transport, the C-141 Starlifter, although the C-5 is much larger. Both aircraft have the distinctive high T-tail, 25-degree wing sweep, and four turbofan engines mounted on pylons beneath the wings.

Lockheed-Georgia Co. delivered the first operational Galaxy to the 437th Airlift Wing, Charleston Air Force Base, S.C., in June l970. In March 1989, the last of 50 C-5B aircraft was added to the 76 C-5As in the Air Force's airlift force structure. The C-5B includes all C-5A improvements as well as more than 100 additional system modifications to improve reliability and maintainability. All 50 C-5Bs are scheduled to remain in the active-duty force, shared by comparably sized and collocated Air Force Reserve Associate units.

SPECIFICATIONS: PERFORMANCE:
Span:  222.9 feet (67.89 meters) Maximum speed:  518 mph (.77 Mach)
Length:  247.1 feet (75.3 meters) Cruising speed:
Height:  65.1 feet (19.84 meters) Range:  6,320 nautical miles (empty)
Empty Weight:  Service ceiling:
Gross Weight:
Crew:  7 (pilot, co-pilot, two flight engineers and three loadmasters)
Engines:  Four General Electric TF-39 engines
Armament:  None

SOURCE:  U. S. Air Force Fact Sheet

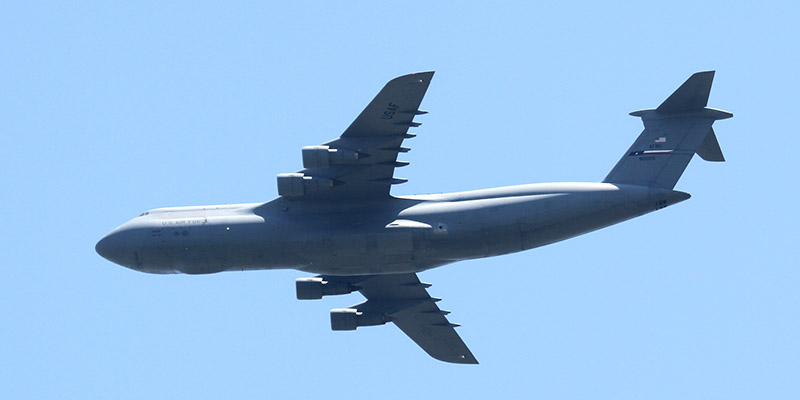

Photo: Robert Deering 5/5/2014
Near Azle, Texas
