Douglas
B-23
Dragon
Previous U.S. MILITARY Next

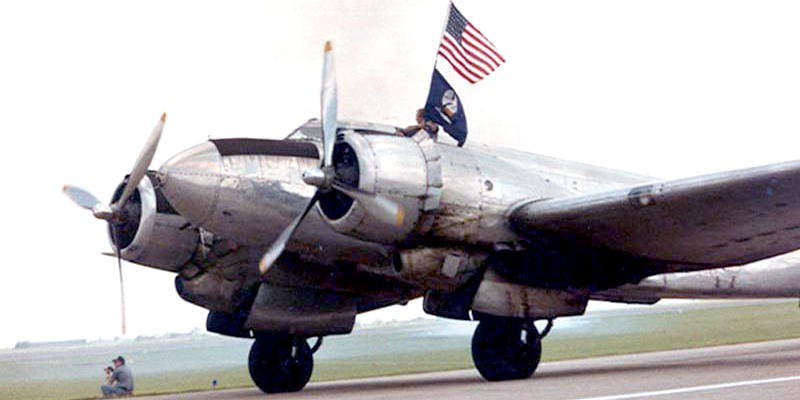

Photo: Robert Deering 1981
Valley International Airport (HRL)
Harlingen, Texas
The B-23 is a twin-engine bomber developed as a successor to the Douglas B-18A. First flown in July 1939, the B-23 incorporated many features of the Douglas DC-3 commercial transport. Although it was much faster than the B-18 and was the first operational Army bomber equipped with a tail gun, the Dragon was soon outclassed by more modern bombers such as the North American B-25 and the Martin B-26. As a result, only 38 B-23s were built.

The B-23s were never used in combat during World War II. Instead they served in secondary roles as reconnaissance, training, transport and test-bed aircraft. Some of the Dragons used in transport service were redesignated UC-67s.
SPECIFICATIONS: PERFORMANCE:
Span:  92 ft. 0 in. Maximum speed:  282 mph
Length:  58 ft. 6 in. Cruising speed:   210 mph
Height:  18 ft. 6 in. Range:  1,400 miles
Empty Weight:  Service ceiling:  31,600 ft.
Gross Weight:  32,400 lbs. maximum
Crew:  Six
Engines:  Two Wright R-2600-3s of 1,600 hp each
Armament:  Three .30-cal. M-2 machine guns, one .50-cal. M-2 machine gun, plus 4,000 lbs. of bombs carried internally

SOURCE:  National Museum of the United States Air Force
