Bell
X1B
.
Previous U.S. MILITARY Next

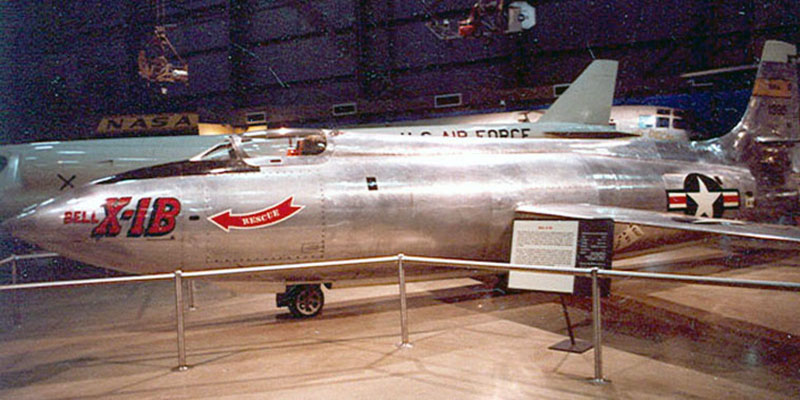

Photo: Robert Deering 1985
National Museum of the USAF
Wright-Patterson AFB (FFO)

Dayton, Ohio
The X-1B was one of a series of rocket-powered experimental research airplanes designed for investigation of various problems associated with supersonic flight. Specifically, the mission of the X-1B was flight research pertaining to aerodynamic heating and pilot reaction control systems. It made its first powered flight on Oct. 8, 1954.

On all test missions, the X-1B was carried to launching altitude, normally 25,000-35,000 feet, nestled under a “mother” airplane. It was then released in mid-air and rocket power was applied and, under full throttle, lasted less than five minutes. After all fuel (an alcohol-water mixture) and liquid oxygen had been consumed, the pilot glided the airplane to earth for a landing.

SPECIFICATIONS: PERFORMANCE:
Span:  28 ft. Maximum speed:  1,650 mph
Length:  35 ft. 7 in Cruising speed:
Height:  10 ft. 8 in. Range:
Empty Weight:  Service ceiling:  90,000 ft
Gross Weight:  16,590 lbs. loaded
Crew:
Engines:  Reaction Motors XLR-11-RM-6 four-chamber rocket engine of 6,000 lbs. thrust
Armament:  None

SOURCE:  National Museum of the United States Air Force

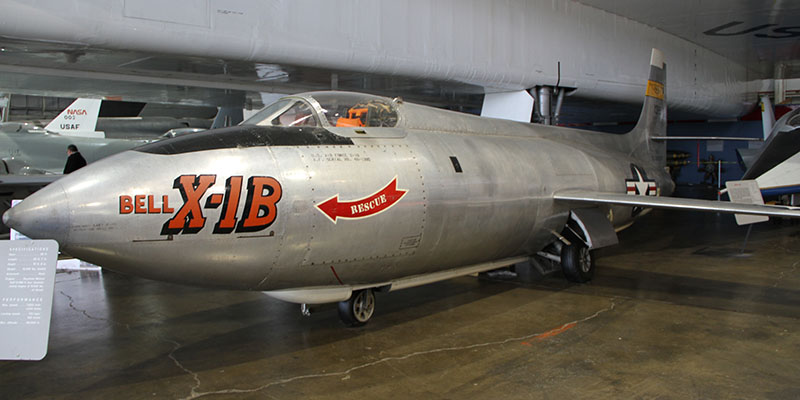

Photo: Robert Deering 10/18/2012
National Museum of the USAF
Wright-Patterson AFB (FFO)

Dayton, Ohio
