Bell

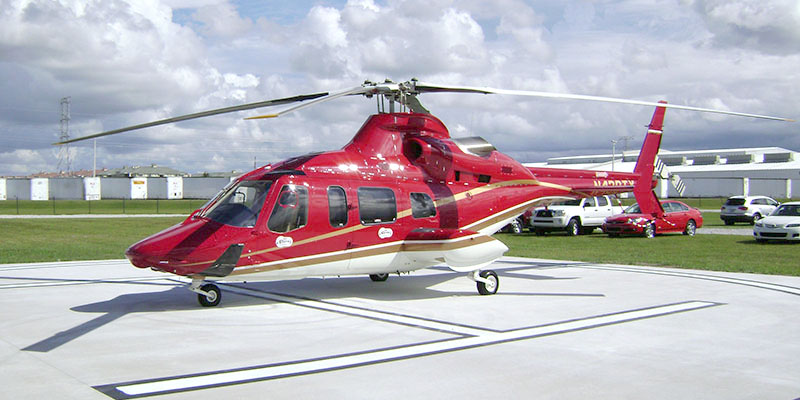

Model 430
Photo: Robert Deering 10/6/2008
Orange County Convention Center (FA91)
Orlando, Florida

Model 30
.

Model 47
.

Model 206
Jet Ranger

Model 407
.

Model 412
.

Model 430
.

Military Aircraft
The Bell Aircraft Corporation was an aircraft manufacturer of the United States, a builder of several types of fighter aircraft for World War II but most famous for the Bell X-1, the first supersonic aircraft, and for the development and production of many important civilian and military helicopters. Bell also developed the Reaction Control System for the Mercury Spacecraft, the North American X-15 and the Bell Rocket Belt. The company was purchased in 1960 by Textron, and lives on today as Bell Helicopter Textron.

History

As a teenager, Larry Bell saw his first plane at an air show, starting a lifelong fascination with aviation. Bell dropped out of high school in 1912 to join his brother in the burgeoning aircraft industry at the Glenn L. Martin Company, where by 1914 he had become shop superintendent. By 1920 Bell was vice president and general manager of Martin, by now based in Cleveland, OH. Feeling that he deserved part ownership, in late 1924 he presented Martin with an ultimatum. Mr. Martin refused, and Bell quit.

Bell spent several years out of the aviation industry, but in 1928 was hired by Reuben H. Fleet at Consolidated Aircraft, in Buffalo, New York where he was guaranteed an interest in the company. Before long, Bell became general manager and business was booming, but he still wanted to be able to run his own company. He knew that, although he could raise local capital, he would not be able to compete with either Consolidated or Curtiss-Wright, the two major aircraft builders also based in Buffalo. Serendipitously, in 1935 Fleet decided to move Consolidated Aircraft to San Diego, and Bell stayed behind to establish his own company, the Bell Aircraft Company, on 10 July 1935, headquartered in the former Consolidated plant at 2050 Elmwood Avenue in Buffalo.

Incidentally, Bell was the third major aircraft builder to occupy the site. The factory complex was originally built in 1916 for the Curtiss Aeroplane & Motor Company, and during World War I had been considered the largest airplane factory in the world.

Bell's first military contract followed in 1937 with the development of the ill-fated YFM-1 Airacuda, an unconventional bomber-destroyer powered by two Allison-powered pusher propellers. The YFM-1 incorporated groundbreaking technology for the time, with gyro stabilized weapons siting and a thermionic fire control system. Including the prototype, just 13 Airacudas were produced, and these saw only limited service with the USAAC before being scrapped in 1942.

Bell enjoyed much success the following year with the development of the single engine P-39 Airacobra, of which 9,588 were built. Putting their previous experience with Allison engines to good use, the P-39 placed the engine in the center of the aircraft, with the propeller driven by a long shaft through which a 37mm cannon was also mounted, firing through the propeller's spinner. Due to persistent problems, the original turbosupercharger was deleted from production models, instead using a single-stage, single-speed supercharger, as was standard on all other Allison-powered products, with the exception of the P-38.

The P-39 performed poorly at high altitudes compared to newer, late-war designs. Most Allied forces thought the Airacobra effective only for ground attack roles, as demonstrated by a few U.S. Army Air Forces units that flew P-39s, such as the so-called Cactus Air Force on Guadalcanal in 1942-43. However, the Soviet Air Force used their Lend-Lease P-39s primarily in the air-to-air role, where they found it to excel as a front-line fighter against some of the best pilots and aircraft of the Luftwaffe. Indeed, the Soviet P-39s scored the highest number of individual kills attributed to any U.S. fighter type.

A somewhat larger and more powerful version of the P-39 was produced shortly before the end of World War II. Called the P-63 Kingcobra, this warplane addressed many of the shortcomings of the P-39, though it was produced too late in the war to make any contribution. 2,971 P-63's were built between 1943 and 1945, many delivered to the Soviet Union. Also, by that time, the Army Air Forces already had the superior P-47 Thunderbolt and P-38 Lightning fighter-bombers.


AH-1
Cobra

H-1
Iroquois (Huey)

H-13D
Sioux

H-57
Sea Raanger

HTL
Sioux

P-39
Airacobra

P-59
Airacomet

P-63
King Cobra

V-22
Osprey

X-1B

X-5

XV-3

XV-15


In October 1942, The Bell-built twin-jet P-59 Airacomet was the first American jet aircraft to fly. Unfortunately, performance was below expectations, roughly on par with contemporaneous propeller-driven aircraft, an outcome generally attributed to the extremely short development timeframe required by the USAAF, as well as the intense secrecy imposed on the project. Design had begun in September 1941, during which time the Bell team was guided mostly by theory, as General Electric would not finish and begin testing the first engine until March 1942. Also, General Henry "Hap" Arnold had forbidden use of wind tunnels to test and optimize the design, but later relented somewhat, only allowing the group to use the low-speed tunnel at Wright Field, Ohio. Bell engineers could only guess at the performance characteristics. Originally intended initially as a production aircraft, the P-59 nevertheless became an important experimental testbed for jet technology, providing invaluable data for development of later jet airplanes.

During World War II, Bell also built heavy bombers under license from other aircraft companies at a factory near Marietta, Georgia, just northwest of Atlanta. Online by mid-1943, the new plant produced hundreds of Consolidated B-24 Liberators and Boeing B-29 Superfortress bombers. In mid-1944, the production of the B-24 was consolidated from several different companies (including some in Texas) to two large factories: the Consolidated Aircraft Company in San Diego and the Ford Motor Company's spawling factory in Willow Run, near Detroit, Michigan, which had been specially designed to produce B-24s. For the rest of the war, Bell's Marietta plant concentrated on producing B-29s, producing 668 of them by the time contract expired in the fall of 1945. Bell ranked 25th among United States corporations in the value of wartime production contracts.

After World War II

As the postwar defense industry downsized, Bell consolidated its operations at the Wheatfield plant, near Buffalo. The aircraft factory in Marietta later became the property of the Lockheed Corporation, which has used it for producing C-130 Hercules, C-141 Starlifter, and C-5 Galaxy transport planes. Although Bell designed several more fighter plane designs during and after WW II, none of these ever entered mass-production.

The XP-77 was a small fighter using non-strategic materials; it was not successful. The XP-83 was a jet escort fighter similar in layout to the P-59 that was cancelled. The Bell XF-109 was a supersonic vertical takeoff fighter that was cancelled in 1961.

Perhaps Bell Aircraft's most important contribution to the history of fixed-wing aircraft development would be the design and building of the experimental Bell X-1 rocket plane, the world's first airplane to break the sound barrier, and its follow-on, the Bell X-2. Note that in a twist on the usual way of designating American aircraft, the following were not different models of the X-1, but rather they were the successive (mostly identical) units of the X-1 program: the X-1, X-1A, X-1B, X-1C, X-1D, and X-1E.

Bell went on to design and produce several different experimental aircraft during the 1950s. These helped the U.S. Air Force and the National Advisory Committee on Aeronautics (NACA) explore the boundaries of aircraft design, and paving the way for the founding of NASA and the exploration of outer space. The X-2 Starbuster achieved Mach 3 (2,100 mph) and a height of 126,000 ft in 1955, blazing a technological trail for the development of spacecraft.

Bell played a crucial role in the development of rocket propulsion after WWII, spearheaded by the likes of some of the most brilliant minds in rocket science like Walter Dornberger (ex-commander of the Nazi germany Pennamunda rocket base) and Wendell Moore. Bell developed and fielded the worlds first nuclear tipped Air-to-Surface cruise missile, the GAM-63 RASCAL in 1957. Wendell Moore developed the Bell Rocket belt, utilizing peroxide monopropellant rocket engines. While the rocket belt failed to be commercially developed, the rocket technology proved invaluable in future Bell programs. Bells crowning achievement in the realm of rocketry was the Agena rocket engine. The Agena was a 12,000 lbf bi-propellant rocket that is considered to this day to be one of the most reliable rockets ever built. 360 units were produced starting in the late 1950's and it was responsible for inserting into orbit most of the satellites launched by the United States in the 1960's.

Bell Aerospace Textron continued to play a significant role in NASA's mission to land men on the moon in the 1960s. Bell designed and built the Reaction Control system for Project Mercury's Redstone command module and a similar system was incorporated into the North American X-15 space plane. NASA selected Bell to develop and built the LLRV Lunar Landing Research Vehicle, three of which were built in the early 1960's to train the Apollo astronauts to land on the moon. Bell also designed the rocket engine used in the Apollo LEM Ascent Propulsion System, which was responsible for getting NASA's astronauts off the moon.

Helicopter Development

Helicopter development began at Bell Aircraft in 1941 with the company's Bell Model 30 first flying in 1943.  After World War II, Bell Helicopters became the only part of Bell Aircraft still producing aircraft.  In 1946 the Civail Aeronautics Authority (CAA) awarded the first helicopter certification to the Model 47, the first Bell Helicopter type to enter production. Later versions of the Model 47 saw significant service in the Korean War and other conflicts, and it became a highly successful commercial model, with some logging over five decades of service. A series of successful helicopter designsfollowed and the UH-1 Iroquois became the most noted helicopter of the War in Vietnam.

Lawrence Bell died in 1956 and for several years afterwards the company was in financial difficulty.  Bell was purchased by the Textron Corporation on 5 July 1960 and is known today as Bell Helicopter Textron.  It is headquarted in Hurst, Texas, near Fort Worth.

 Today, Bell manufactures military helicopter and tiltrotor products in and around Fort Worth, as well as in Amarillo, Texas, and commercial rotorcraft products in Mirabel, Quebec, Canada. Bell provides training and support services worldwide.

Products

Commercial helicopters

  • Bell 30
  • Bell 47B, Bell 47G
  • Bell 204 – civilian version of UH-1
  • Bell 205 – civilian version of UH-1
  • Bell 206 Jet Ranger – in production
  • Bell 210 – remanufactured, civilian version of UH-1H
  • Bell 212
  • Bell 214
  • Bell 214ST
  • Bell 222
  • Bell 230
  • Bell 407
  • Bell 412
  • Bell 417 – model canceled in 2007
  • Bell 427
  • Bell 429
  • Bell 430
  • Bell 525 Relentless – under development
  • Bell SLS – under development

Tiltrotors

  • V-280 Valor - currently in development, estimated first flight 2017
  • Bell/Agusta BA609 - with AgustaWestland
  • TR918 Eagle Eye UAV
  • Quad TiltRotor - with Boeing BDS

Projects produced by other companies

  • AgustaWestland AW139 helicopter (formerly 50/50 as the Bell/Agusta AB139, now 100% AgustaWestland)

Military fixed-wing aircraft

  • Consolidated B-24 Liberator (under subcontract)
  • Boeing B-29 Superfortress (under subcontract)
  • PQM-56
  • P-39 Airacobra
  • P-59 Airacomet
  • P-63 Kingcobra
  • XP-77
  • XP-83
  • YFM-1 Airacuda
  • XF-109
  • X-1
  • X-2
  • X-5
  •  X-22

Military helicopters and tiltrotors

  • AH-1 Cobra (or HueyCobra)
  • AH-1 SeaCobra/SuperCobra
  • ARH-70/Model 445
  • H-1 upgrade program:
    • UH-1Y Venom
    • AH-1Z Viper (or SuperCobra)
  • H-13 Sioux / Ranger
  • HSL
  • OH-58 Kiowa
  • TH-57 Sea Ranger
  • UH-1 Iroquois (or Huey)
  • UH-1N Twin Huey
  • Bell 533 - experimental Huey variant with auxiliary turbojets
  • V-22 Osprey - with Boeing BDS
  • YAH-63/Model 409 - Cobra-based competitor to the YAH-64
  • XV-3
  • XV-15

Missiles

  • AAM-N-5 Meteor
  • ASM-A-1 Tarzon
  • GAM-63 RASCAL
  • X-9 Shrike
