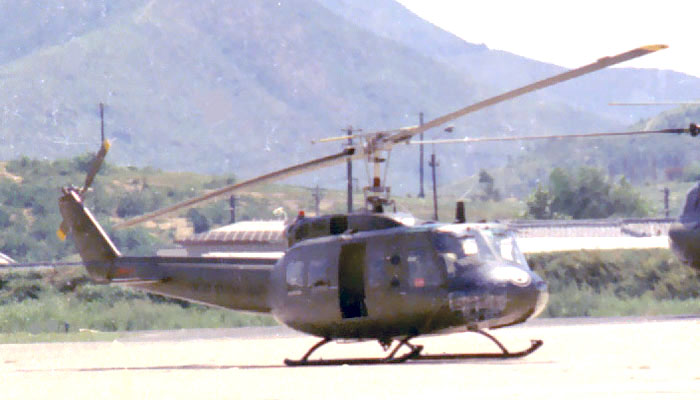

UH-1D
Photo: Robert Deering 1969

Idlewild AAF (A805)
Taegu, Korea

The Bell H-1 Iroquois (unofficially Huey) is a military helicopter powered by a single, turboshaft engine, with a two-bladed main rotor and tail rotor. The helicopter was developed by Bell Helicopter to meet the United States Army's requirement for a medical evacuation and utility helicopter in 1952, and first flew on 20 October 1956. Ordered into production in March 1960, the UH-1 was the first turbine-powered helicopter to enter production for the United States military and were widely used by all branches of service.  More than 16,000 have been produced worldwide.

The first combat operation of the UH-1 was in the service of the U.S. Army during the Vietnam War. The original designation of HU-1 led to the helicopter's nickname of Huey. In September 1962, the designation was changed to UH-1, but "Huey" remained in common use. Approximately 7,000 UH-1 aircraft saw service in Vietnam.

SPECIFICATIONS: (UH-1D) PERFORMANCE:
Rotor Span:  48 ft 0 in (14.63 m) Maximum speed:  135 mph (217 km/h; 117 kn)
Length:  57 ft 1 in (17.40 m) with rotors Cruising speed:  125 mph (109 kn; 201 km/h)
Height:  14 ft 5 in (4.39 m) Range:  315 mi (274 nmi; 507 km)
Empty Weight:  5,215 lb (2,365 kg) Service ceiling:  19,390 ft (5,910 m)
Gross Weight:  9,040 lb (4,100 kg)
Crew:  1–4
Capacity: 3,880 lb (1,760 kg) including 14 troops, or 6 stretchers, or equivalent cargo
Engines:  1 × Lycoming T53-L-11 turboshaft, 1,100 shp (820 kW)
Armament:

SOURCE:

Variants

H-40: The initial Bell 204 prototype. Three prototypes were built, equipped with the Lycoming XT-53-L-1 engine of 700 shp (520 kW).

YH-40: Six aircraft for evaluation, as XH-40 with 12-inch (300 mm) cabin stretch and other modifications.

Bell Model 533: One YH-40BF rebuilt as a flight test bed with turbofan engines and wings.

HU-1A: Initial Bell 204 production model, redesignated as the UH-1A in 1962. 182 built.

  • TH-1A: UH-1A with dual controls and blind-flying instruments, 14 conversions.
  • XH-1A: A single UH-1A was redesignated for grenade launcher testing in 1960.

HU-1B: Upgraded HU-1A, various external and rotor improvements. Redesignated UH-1B in 1962. 1014 built plus four prototypes designated YUH-1B.

  • NUH-1B: a single test aircraft, serial number 64-18261.

UH-1C: The UH-1B gunship lacked the power necessary to carry weapons and ammunition and keep up with transport Hueys, and so Bell designed yet another Huey variant, the "UH-1C", intended strictly for the gunship role. It is an UH-1B with improved engine, modified blades and rotor-head for better performance in the gunship role. 767 built.

YUH-1D: Seven pre-production prototypes of the UH-1D.

UH-1D: Initial Bell 205 production model (long fuselage version of the 204). Designed as a troop carrier to replace the CH-34 then in US Army service. 2008 built many later converted to UH-1H standard.

  • HH-1D: Army crash rescue variant of UH-1D.

UH-1E: UH-1B/C for USMC with different avionics and equipment. 192 built.

  • NUH-1E: UH-1E configured for testing.
  • TH-1E: UH-1C configured for Marine Corps training. Twenty were built in 1965.

UH-1F: UH-1B/C for USAF with General Electric T58-GE-3 engine of 1,325 shp (988 kW). 120 built.

  • TH-1F: Instrument and Rescue Trainer based on the UH-1F for the USAF. 26 built.

UH-1G: Unofficial name applied locally to at least one armed UH-1H by Cambodia.

UH-1H: Improved UH-1D with a Lycoming T53-L-13 engine of 1,400 shp (1,000 kW). 5435 built.

  • UH-1H: Canadian Forces designation for the UH-1H utility transport helicopter. Redesignated CH-118. A total of 10 built.
  • EH-1H: Twenty-two aircraft converted by installation of AN/ARQ-33 radio intercept and jamming equipment for Project Quick Fix.
  • HH-1H: SAR variant for the USAF with rescue hoist.  A total of 30 built.
  • JUH-1: Five UH-1Hs converted to SOTAS battlefield surveillance configuration with belly-mounted airborne radar.
  • TH-1H: Recently modified UH-1Hs for use as basic helicopter flight trainers by the USAF.

UH-1J: An improved Japanese version of the UH-1H built under license in Japan by Fuji was locally given the designation UH-1J.  Among improvements were an Allison T53-L-703 turboshaft engine providing 1,343 kW (1,800 shp), a vibration-reduction system, infrared countermeasures, and a night-vision-goggle (NVG) compatible cockpit.

HH-1K: Purpose built SAR variant of the Model 204 for the US Navy with USN avionics and equipment. 27 built.

TH-1L: Helicopter flight trainer based on the HH-1K for the USN. A total of 45 were built.

  • UH-1L: Utility variant of the TH-1L. Eight were built.

UH-1M: Gunship specific UH-1C upgrade with Lycoming T53-L-13 engine of 1,400 shp (1,000 kW).

UH-1N: Initial Bell 212 production model, the Bell "Twin Pac" twin-engined Huey powered by Pratt & Whitney Canada T400-CP-400.

UH-1P: UH-1F variant for USAF for special operations use and attack operations used solely by the USAF 20th Special Operations Squadron, "the Green Hornets".

EH-1U: No more than 2 UH-1H aircraft modified for Multiple Target Electronic Warfare System (MULTEWS).

UH-1V: Aeromedical evacuation, rescue version for the US Army.

EH-1X: Ten Electronic warfare UH-1Hs converted under "Quick Fix IIA".

UH-1Y: Upgraded variant developed from existing upgraded late model UH-1Ns, with additional emphasis on commonality with the AH-1Z.

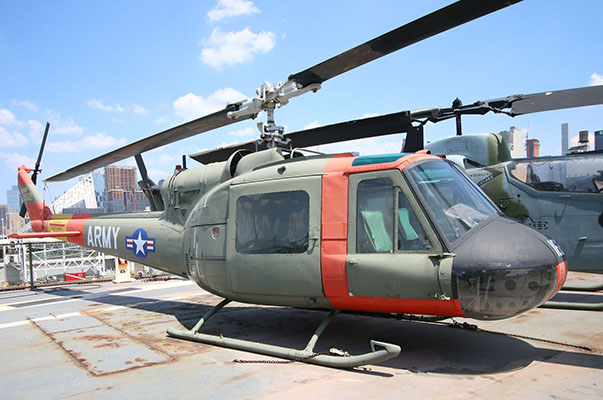

UH-1A / HU-1A
Photo: Robert Deering 6/13/2017

USS Intrepid Museum (CV-11)
New York City, New York

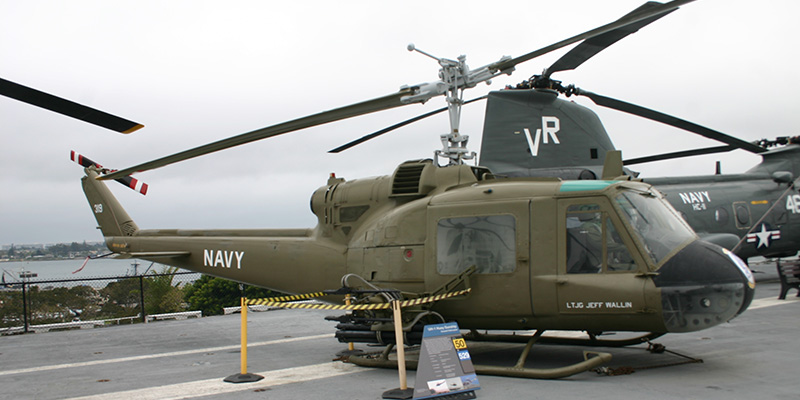

UH-1C
Photo: Robert Deering 6/28/2010
USS Midway Museum (CV-41)
San Diego, California

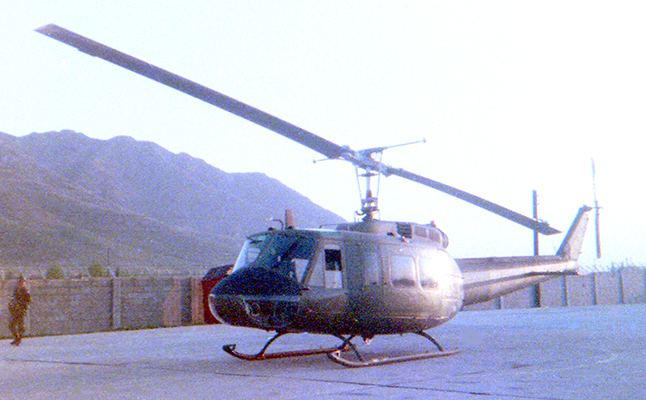

UH-1D
Photo: Robert Deering 1969

Idlewild AAF (A805)
Taegu, Korea

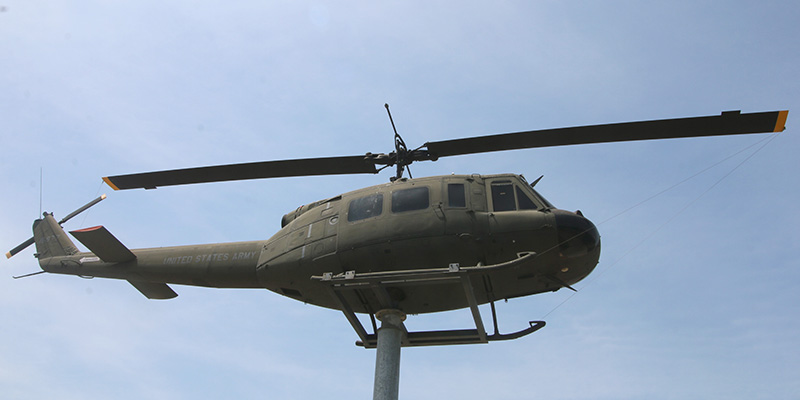

UH-1D
Photo: Robert Deering 7/21/2018

Frontiers of Flight Museum
Love Field (DAL)

Dallas, Texas


HH-1D
Photo: Robert Deering 1968
Wright AAF (LHW)
Fort Stewart, Georgia

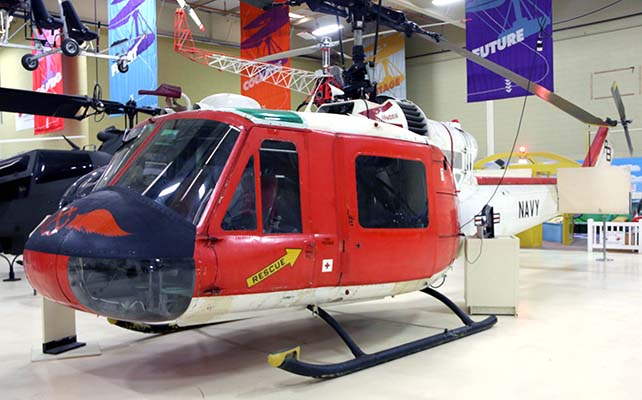

TH-1L
Photo: Robert Deering 7/16/2014

American Helicopter Museum
Brandywine Airport (OQN)
West Chester, Pennsylvania

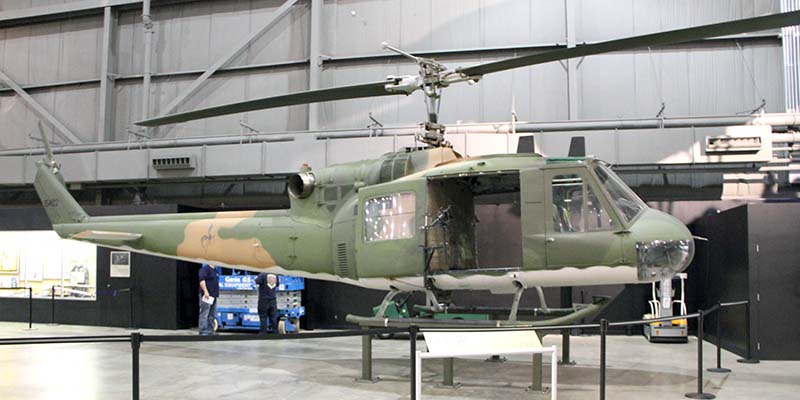

UH-1P
