Robinson
R44
#

Photo: Robert Deering 10/23/2006
Smithsonian National Air and Space Museum
Chantilly, Virginia
The Robinson R44 is a four-seat light helicopter produced by the Robinson Helicopter Company since 1992. Based on the company's two-place Robinson R22, the R44 features hydraulically-assisted flight controls.

The R44 is a single-engined helicopter with a semi-rigid two-bladed main rotor and a two-bladed tail rotor and a skid landing gear. It has an enclosed cabin with two rows of side-by-side seating for a pilot and three passengers. Tail rotor direction of rotation on the R44 is reversed compared to the R22 for improved yaw control authority. On the R44 the advancing blade is on the bottom.

Designed during the 1980s by Frank Robinson and his staff of engineers, the R44 first flew on March 31, 1990. The R44 Astro was awarded an FAA Type Certificate in December 1992, with the first deliveries taking place in January 1993. In January 2000, Robinson introduced the Raven with hydraulically-assisted controls and adjustable pedals. In July 2002, Robinson introduced the Raven II featuring a more powerful, fuel-injected engine and wider blades, allowing a higher gross weight and improved altitude performance.

In 1997, a Robinson R44 was piloted by Jennifer Murray for the first helicopter circumnavigation of the world by a woman, covering a distance of 36,000 miles in 97 days. Chilean president Sebastián Piñera owns one of these choppers, and has made several public appearances flying it. Since 2002, Belgian Prince Philippe flies a red R44 for personal leisure, with the unique registry code "OO-PFB", which stands for "Prins Filip België".  British singer Jay Kay also owns an R44 (registry code G-JKAY), which he pilots in the music video to the song White Knuckle Ride.

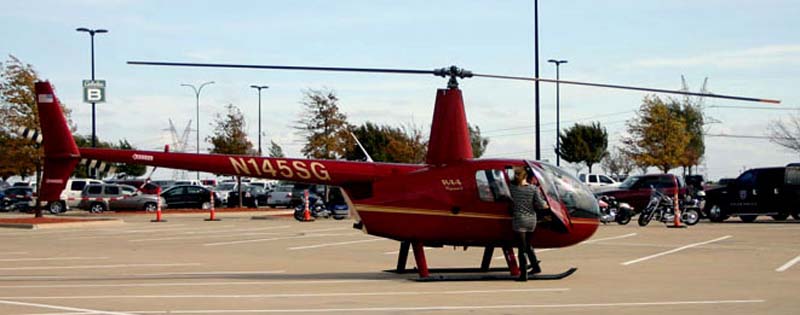

Photo: Robert Deering 11/10/2012
Near Alliance Airport (AFW)
Fort Worth, Texas
SPECIFICATIONS: PERFORMANCE:
Rotor Span: 33 ft (10.1 m)
Length:  39 ft 6 in (9.0 m)
Height:  10 ft 9 in (3.3 m)
Empty Weight:
1,450 lb (657.7 kg)
Gross Weight:   2,500 lb (1,134 kg)
Crew:
1 or 2 pilots
Maximum speed: 130 kn (240 km/h; 150 mph)
Cruising speed: 110 kn (200 km/h; 130 mph)
Range: 300 nmi (560 km; 350 mi)
Service ceiling:
Engines: 1 × Lycoming IO-540-AE1A5 6 cylinder, flat engine with fuel injection, 245 bhp (183 kW)

SOURCE: Wikipedia
