Mil
Mi-24
"Hind"

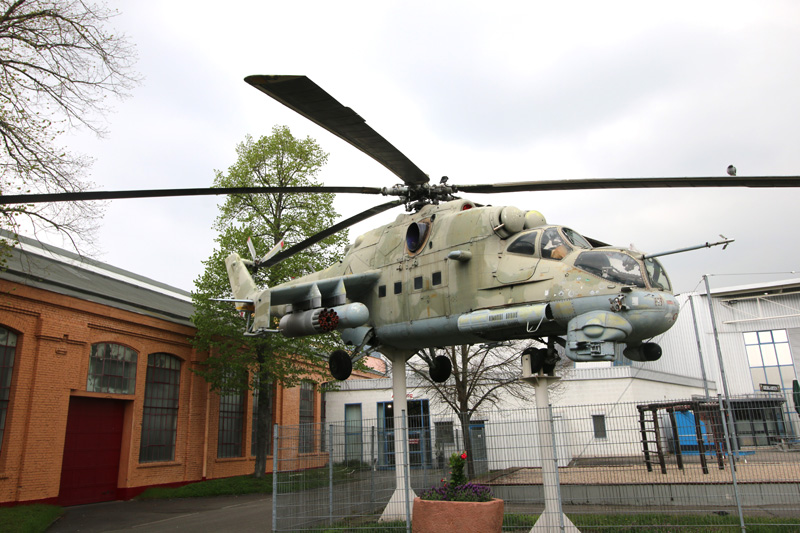

Photo: Robert Deering 4/9/2019
Technik Museum
Speyer, Germany

The Mil Mi-24 is a large helicopter gunship, attack helicopter and low-capacity troop transport with room for eight passengers. It is produced by Mil Moscow Helicopter Plant and has been operated since 1972 by the Soviet Air Force and its successors, along with more than 30 other nations.

In NATO circles, the export versions, Mi-25 and Mi-35, are denoted with a letter suffix as "Hind D" and "Hind E". Soviet pilots called the Mi-24 the "flying tank", a term used historically with the famous World War II Soviet Il-2 Shturmovik armored ground attack aircraft. More common unofficial nicknames were "Galina" (or "Galya"), "Crocodile", due to the helicopter's camouflage scheme and "Drinking Glass", because of the flat glass plates that surround earlier Mi-24 variants' cockpits.

During the early 1960s, it became apparent to Soviet designer Mikhail Leont'yevich Mil that the trend towards ever-increasing battlefield mobility would result in the creation of flying infantry fighting vehicles, which could be used to perform both fire support and infantry transport missions. The first expression of this concept was a mock-up unveiled in 1966 in the experimental shop of the Ministry of Aircraft's factory number 329, where Mil was head designer. The mock-up designated V-24 was based on another project, the V-22 utility helicopter, which itself never flew. The V-24 had a central infantry compartment that could hold eight troops sitting back to back, and a set of small wings positioned to the top rear of the passenger cabin, capable of holding up to six missiles or rockets and a twin-barreled GSh-23L cannon fixed to the landing skid.

Mil proposed the design to the heads of the Soviet armed forces. While he had the support of a number of strategists, he was opposed by several more senior members of the armed forces, who believed that conventional weapons were a better use of resources. Despite the opposition, Mil managed to persuade the defence minister's first deputy, Marshal Andrey A. Grechko, to convene an expert panel to look into the matter. While the panel's opinions were mixed, supporters of the project eventually held sway and a request for design proposals for a battlefield support helicopter was issued. The development and use of gunships and attack helicopters by the US Army during the Vietnam War convinced the Soviets of the advantages of armed helicopter ground support, and fostered support for the development of the Mi-24.

Mil engineers prepared two basic designs: a 7-ton single-engine design and a 10.5-ton twin-engine design, both based on the 1,700 hp Izotov TV3-177A turboshaft. Later, three complete mock-ups were produced, along with five cockpit mock-ups to allow the pilot and weapon station operator positions to be fine-tuned.

The Kamov design bureau suggested an army version of their Ka-25 ASW helicopter as a low-cost option. This was considered but later dropped in favor of the new Mil twin-engine design. A number of changes were made at the insistence of the military, including the replacement of the 23 mm cannon with a rapid-fire heavy machine gun mounted in a chin turret, and the use of the 9K114 Shturm (AT-6 Spiral) anti-tank missile.

A directive was issued on 6 May 1968 to proceed with the development of the twin-engine design. Work proceeded under Mil until his death in 1970. Detailed design work began in August 1968 under the codename Yellow 24. A full-scale mock-up of the design was reviewed and approved in February 1969. Flight tests with a prototype began on 15 September 1969 with a tethered hover, and four days later the first free flight was conducted. A second prototype was built, followed by a test batch of ten helicopters.

Acceptance testing for the design began in June 1970, continuing for 18 months. Changes made in the design addressed structural strength, fatigue problems and reduced vibration levels. Also, a 12-degree anhedral was introduced to the wings to address the aircraft's tendency to Dutch roll at speeds in excess of 200 km/h (124 mph), and the Falanga missile pylons were moved from the fuselage to the wingtips. The tail rotor was moved from the right to the left side of the tail, and the rotation direction reversed. The tail rotor now rotated up on the side towards the front of the aircraft, into the downwash of the rotor, which increased the efficiency of the tail rotor. A number of other design changes were made until the production version Mi-24A (izdeliye 245) entered production in 1970, obtaining its initial operating capability in 1971 and was officially accepted into the state arsenal in 1972.

In 1972, following completion of the Mi-24, development began on a unique attack helicopter with transport capability. The new design had a reduced transport capability (three troops instead of eight) and was called the Mi-28, and that of the Ka-50 attack helicopter, which is smaller and more maneuverable and does not have the large cabin for carrying troops. In October 2007, the Russian Air Force announced it would replace its Mi-24 fleet with Mi-28Ns and Ka-52s by 2015.
