McDonnell Douglas
KC-10
Extender
Previous U.S. MILITARY Next

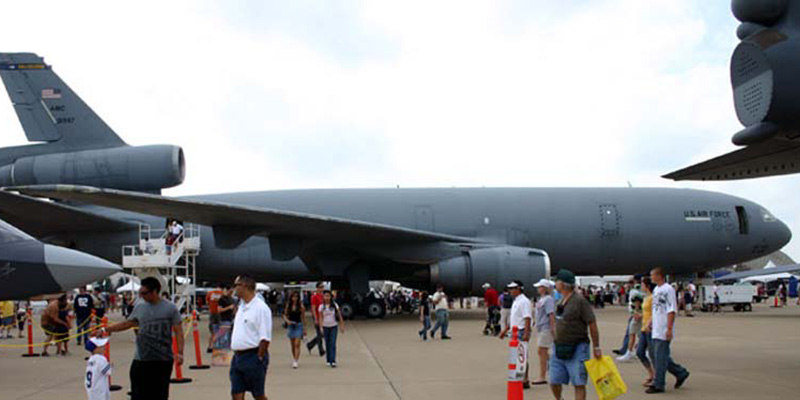

Photo: Robert Deering 10/12/2008
Alliance Airport (AFW)
Fort Worth, Texas

Mission
The KC-10 Extender is an Air Mobility Command advanced tanker and cargo aircraft designed to provide increased global mobility for U.S. armed forces. Although the KC-l0's primary mission is aerial refueling, it can combine the tasks of a tanker and cargo aircraft by refueling fighters and simultaneously carry the fighter support personnel and equipment on overseas deployments. The KC-10 is also capable of transporting litter and ambulatory patients using patient support pallets during aeromedical evacuations.

Features
The KC-10 can transport up to 75 people and nearly 170,000 pounds (76,560 kilograms) of cargo a distance of about 4,400 miles (7,040 kilometers) unrefueled.

In addition to the three main DC-10 wing fuel tanks, the KC-10 has three large fuel tanks under the cargo floor, one under the forward lower cargo compartment, one in the center wing area and one under the rear compartment. Combined, the capacity of the six tanks carries more than 356,000 pounds (160,200 kilograms) of fuel - almost twice as much as the KC-135 Stratotanker.

Using either an advanced aerial refueling boom, or a hose and drogue centerline refueling system, the KC-10 can refuel a wide variety of U.S. and allied military aircraft within the same mission. The aircraft is equipped with lighting for night operations.

The KC-10's boom operator controls refueling operations through a digital, fly-by wire system. Sitting in the rear of the aircraft, the operator can see the receiver aircraft through a wide window. During boom refueling operations, fuel is transferred to the receiver at a maximum rate of 1,100 gallons (4,180 liters) per minute; the hose and drogue refueling maximum rate is 470 gallons (1,786 liters) per minute. The automatic load alleviation and independent disconnect systems greatly enhance safety and facilitate air refueling. The KC-10 can be air-refueled by a KC-135 or another KC-10A to increase its delivery range.

The large cargo-loading door can accept most air forces' fighter unit support equipment. Powered rollers and winches inside the cargo compartment permit moving heavy loads. The cargo compartment can accommodate loads ranging from 27 pallets to a mix of 17 pallets and 75 passengers.

Background
A modified Boeing Company DC-10, the KC-10A entered service in 1981. Although it retains 88 percent of systems commonality with the DC-10, it has additional systems and equipment necessary for its Air Force mission. These additions include military avionics; aerial refueling boom and aerial refueling hose and drogue; seated aerial refueling operator station; and aerial refueling receptacle and satellite communications.

Twenty KC-10s were modified to add wing-mounted pods further enhancing their aerial refueling capabilities. Ongoing modifications include the addition of communications, navigation and surveillance equipment to meet future civil air traffic control needs, and the incorporation of service bulletins to maintain Federal Aviation Administration certification.

The KC-10A is operated by the 305th Air Mobility Wing at Joint Base McGuire-Dix-Lakehurst, N.J.; and the 60th Air Mobility Wing, Travis Air Force Base, Calif. Air Force Reserve Associate units are assigned to the 349th Air Mobility Wing at Travis, and the 514th Air Mobility Wing at JB McGuire-Dix-Lakehurst.

During operations Desert Shield and Desert Storm in 1991, the KC-10 fleet provided in-flight refueling to aircraft from the U.S. armed forces as well as those of other coalition forces. In the early stages of Operation Desert Shield, in-flight refueling was key to the rapid airlift of materiel and forces. In addition to refueling airlift aircraft, the KC-10, along with the smaller KC-135, moved thousands of tons of cargo and thousands of troops in support of the massive Persian Gulf buildup. The KC-10 and the KC-135 conducted about 51,700 separate refueling operations and delivered 125 million gallons (475 million liters) of fuel without missing a single scheduled rendezvous.

In March 1999, a NATO air campaign, Operation Allied Force, was launched against the government of Yugoslavia. The mobility portion of the operation began in February and was heavily tanker dependent. By early May 1999, some 150 KC-10s and KC-135s deployed to Europe where they refueled bombers, fighters and support aircraft engaged in the conflict. The KC-10 flew 409 missions throughout the entire Allied Force campaign and continued support operations in Kosovo.

Since Sept. 11, 2001, KC-10s have played a prominent role. The KC-10 has flown more than 350 missions guarding U.S. skies as a part of Operation Noble Eagle. During operations Enduring Freedom and Iraqi Freedom, KC-10s flew more than 1,390 missions delivering critical air refueling support to numerous joint and coalition receiver aircraft.

SPECIFICATIONS: PERFORMANCE:
Span:  165 feet, 4.5 inches (50 meters) Maximum speed:  619 mph (Mach 0.825)
Length:  181 feet, 7 inches (54.4 meters) Cruising speed:
Height:  58 feet, 1 inch (17.4 meters) Range:  4,400 miles (3,800 nautical miles) with cargo;
Empty Weight:  Service ceiling:  42,000 feet (12,727 meters)
Gross Weight:  590,000 pounds (265,500 kilograms)
Crew:  Basic Crew - Four (pilot, co-pilot, flight engineer and boom operator)
Engines:  Three General Electric CF6-50C2 turbofans,  52,500 pounds, each engine
Armament:  None

SOURCE:  U. S. Air Force Fact Sheet
