Maule

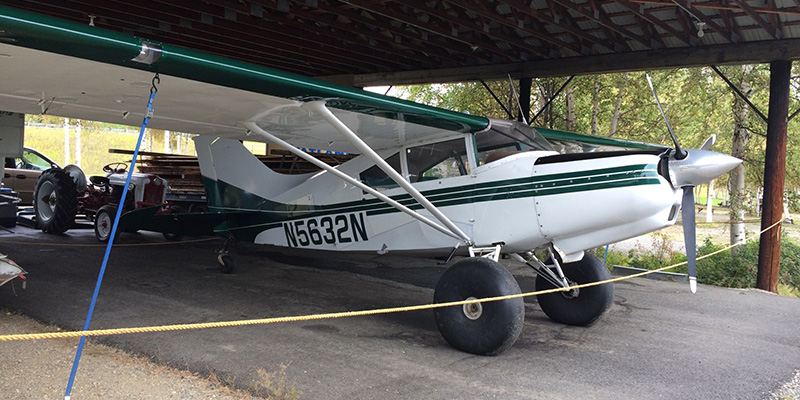

M-5 235C Lunar Rocket
 Photo: Robert Deering 8/23/2018
 Nenana, Alaska

Maule M-5

The Maule M-5 is an American four-seat cabin monoplane designed and built by the Maule Aircraft Company.

The M-5 was a development of the earlier Maule M-4 with improved STOL performance. It has a 30% increase in flap area and enlarged tail surfaces.  Two prototype M-5s flew in 1971, one powered by a 210-hp (157 kW) engine, the other with a 220-hp (164 kW) engine.

The M-5 is a steel-tube and fabric high-wing braced-monoplane with a cantilever tailplane with a single fin and rudder. It has a fixed-tailwheel landing gear and an enclosed cabin with two rows of side-by-side seating for a pilot and three passengers. The aircraft entered production in 1974 and was named the Strata Rocket and the Lunar Rocket. A generally similar M-6 Super Rocket was also developed with a 3-foot-longer (0.91 m) wingspan and more fuel capacity, smaller ailerons and larger flaps.

SOURCE: Wikipedia

Maule Aircraft

Maule Air, Inc. is a manufacturer of light, single-engine, short take-off and landing (STOL) aircraft, based in Moultrie, Georgia, USA. The company delivered 2,500 aircraft in its first 50 years of business.

Belford D. Maule (1911–1995) designed his first aircraft, the M-1 starting at age 19. He founded the company Mechanical Products Co. in Napoleon, Michigan to market his own starter design.  In 1941 the B. D. Maule Co. was founded, and Maule produced tail wheels and fabric testers. In 1953 he began design work, and started aircraft production with the "Bee-Dee" M-4 in 1957.

The company is a family-owned enterprise. June Maule, widow of B. D. Maule, remained directly involved with factory production until her death in 2009 at the age of 92.
Products
The aircraft produced by Maule Air are tube-and-fabric designs and are popular with bush pilots, thanks to their very low stall speed, their tundra tires and oleo strut landing gear. Most Maules are built with tail wheel or amphibious configurations, although the newer MXT models have tricycle gear.

Model Wingspan Engine Gross weight Vso VLD
M4-210 29'8" 210 HP Continental 2300 lbs 28 mph 145 mph
M4-220 220 HP Franklin
M-5-180C 30'10" 180 HP Lycoming Carb 2400 lbs 38 mph 135 mph
M-5-200C 200 HP Lycoming Injected 2500 lbs 38 mph 140 mph
M-5-210TC 210 HP Lycoming Turbo 2500 lbs 38 mph 196 mph
M-5-210C 210 HP Continental Injected 2500 lbs 38 mph 145 mph
M-5-235C 235 HP Lycoming carb 2500 lbs 38 mph 158 mph
M-5-235C 235 HP Lycoming injected 2500 lbs 39 mph 158 mph
M-6-235 32' 11" 235 HP Lycoming O-540-J1A5D 2500 lbs 35 mph 160 mph
M-6-235 235 HP Lycoming IO-540-W1A5D
M-7 33' 6" 235 HP Lycoming IO-540-W 2500 lbs 40 mph
M-9 32' 11" 230 HP SMA SR305 Diesel 2800 lbs 46 mph

Source: Wikipedia
