Lockheed
F-104
Starfighter
Previous U.S. MILITARY Next

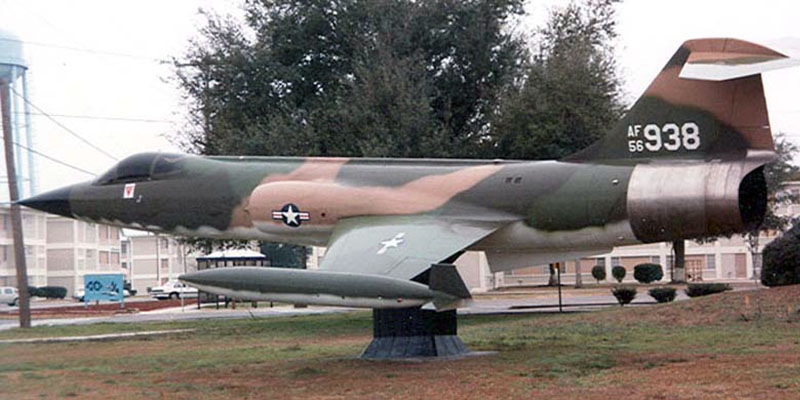

Photo: Robert Deering 1987
Keesler AFB (BIX)
Biloxi, Mississippi
Designed as a supersonic superiority fighter, the F-104 was produced in two major versions. Armed with a six-barrel M61 20mm Vulcan cannon, it served as a tactical fighter, and equipped additionally with heat-seeking Sidewinder missiles, as a day-night interceptor. Development of the F-104 began in 1952, and the first XF-104 made its initial flight in 1954. On May 18, 1958, an F-104A set a world speed record of 1,404.19 mph, and on Dec. 14, 1959, an F-104C set a world altitude record of 103,395 feet. The Starfighter was the first aircraft to hold simultaneous official world records for speed, altitude and time-to-climb.

The USAF procured about 300 Starfighters in one and two-seat versions. In addition, more than 1,700 F-104s were built in the United States and abroad under the military aid program for various nations including Canada, West Germany, Italy, Norway, the Netherlands, Belgium, Denmark, Greece, Turkey, Spain, Taiwan and Japan.

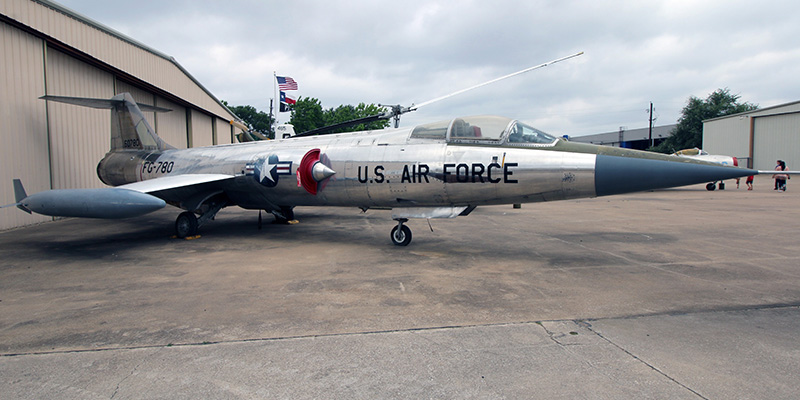

Photo: Robert Deering 4/26/2014
Cavanaugh Flight Museum
Addison Airport (ADS)

Addison. Texas

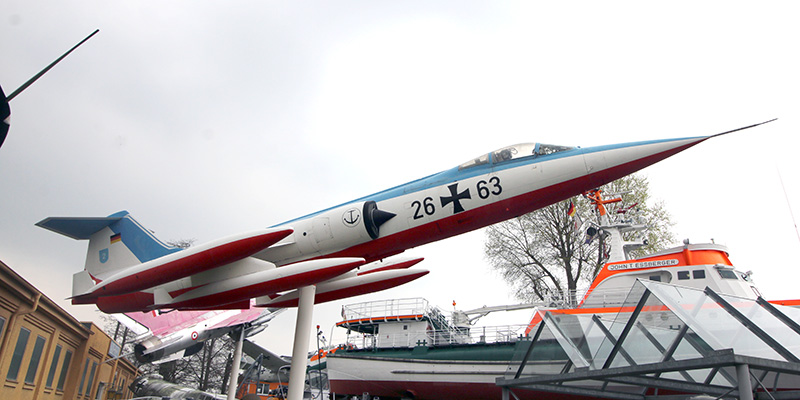

Photo: Robert Deering 4/9/2019
Technik Museum

Speyer, Germany

SPECIFICATIONS: PERFORMANCE:
Span:  21 ft. 11 in. Maximum speed:  1,320 mph
Length:  54 ft. 10 in. Cruising speed:  575 mph
Height:  13 ft. 6 in. Range:  1,250 miles
Empty Weight:  Service ceiling:  58,000 ft.
Gross Weight:   27,853 lbs. maximum
Crew:  Pilot
Engines:  One General Electric J-79 of 15,800 lbs. thrust (with afterburner)
Armament:  One M-61 20mm cannon, two air-to-air missiles, nuclear or conventional bombs

SOURCE:  National Museum of the United States Air Force

1959 DOD Aircraft
Recognition Manual Page
