Douglas
TA-4
Skyhawk
Previous U.S. MILITARY Next

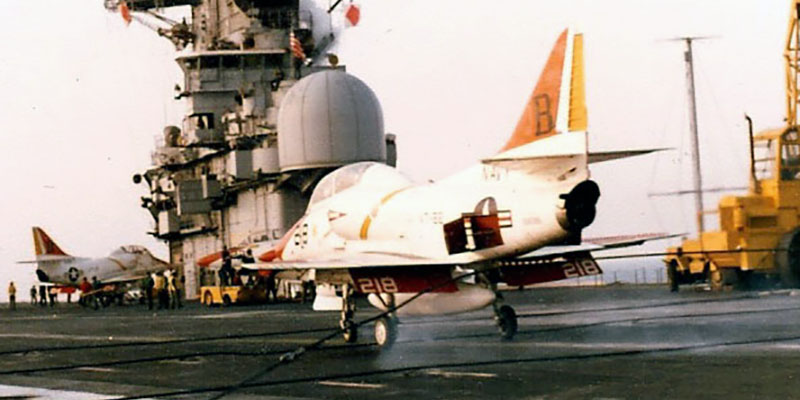

Photo: Robert Deering 1981
USS Lexington (CV-16)
Gulf of Mexico

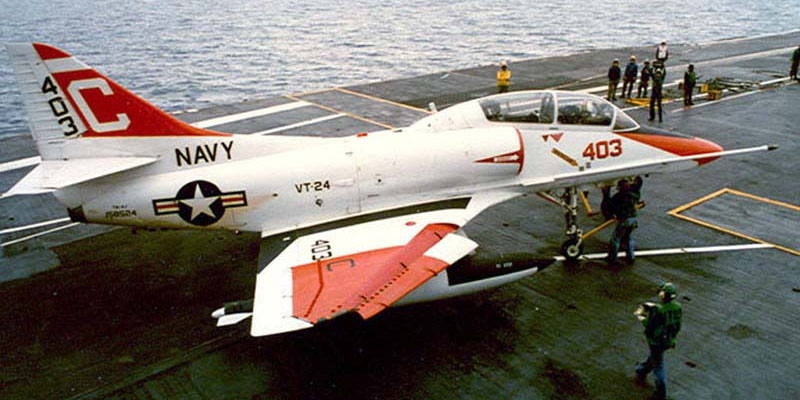

Photo: Robert Deering 1981
USS Lexington (CV-16)
Gulf of Mexico

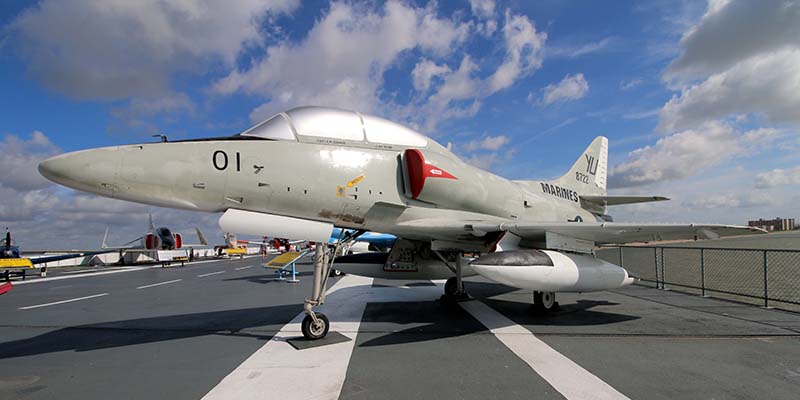

Photo: Robert Deering 6/27/2015
USS Lexington Museum (CV-16)
Corpus Christi, Texas

The TA-4 is a two seat trainer version of the Douglas A-4 Skyhawk

The Douglas A-4 Skyhawk is a carrier-capable attack aircraft developed for the United States Navy and United States Marine Corps. The delta winged, single-engined Skyhawk was designed and produced by Douglas Aircraft Company, and later by McDonnell Douglas. It was originally designated the A4D under the U.S. Navy's pre-1962 designation system.

The Skyhawk is a light-weight aircraft with a maximum takeoff weight of 24,500 pounds (11,100 kg) and has a top speed of more than 600 miles per hour (970 km/h). The aircraft's five hardpoints support a variety of missiles, bombs and other munitions and was capable of delivering nuclear weapons using a low altitude bombing system and a "loft" delivery technique. The A-4 was originally powered by the Wright J65 turbojet engine; from the A-4E onwards, the Pratt & Whitney J52 was used.

The Navy issued a contract for the type on 12 June 1952, and the first prototype first flew from Edwards Air Force Base, California on 22 June 1954.  The Skyhawk remained in production until 1979, with 2,960 aircraft built, including 555 two-seat trainers (TA-4).
SPECIFICATIONS: PERFORMANCE:
Span:  26 ft 6 in (8.38 m) Maximum speed:  585 kn (673 mph, 1,077 km/h)
Length:  40 ft 3 in (12.22 m) Cruising speed:
Height:  15 ft (4.57 m) Range:  1,700 nmi (2,000 mi, 3,220 km)
Empty Weight:  10,450 lb (4,750 kg) Service ceiling:  42,250 ft (12,880 m)
Gross Weight:  18,300 lb (8,318 kg)
Crew:  2
Engines:  1 × Pratt & Whitney J52-P8A turbojet, 9,300 lbf (41 kN)
Armament:  None

SOURCE:  Wikipedia
