Douglas
A-4 / A4D
Skyhawk
Previous U.S. MILITARY Next

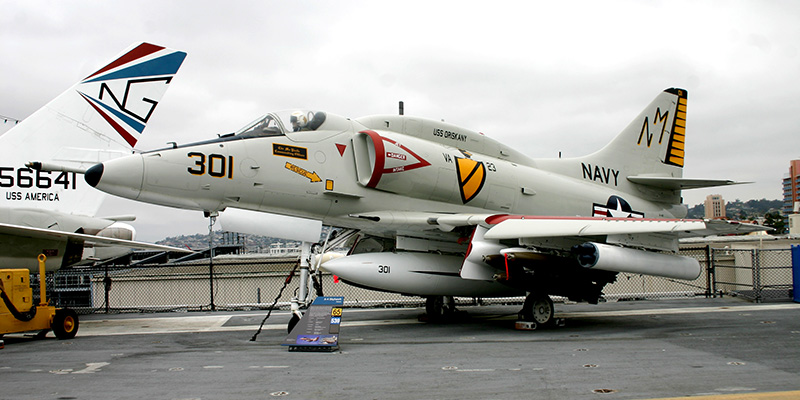

Photo: Robert Deering 6/28/2010
USS Midway Museum (CV-41)
San Diego, California

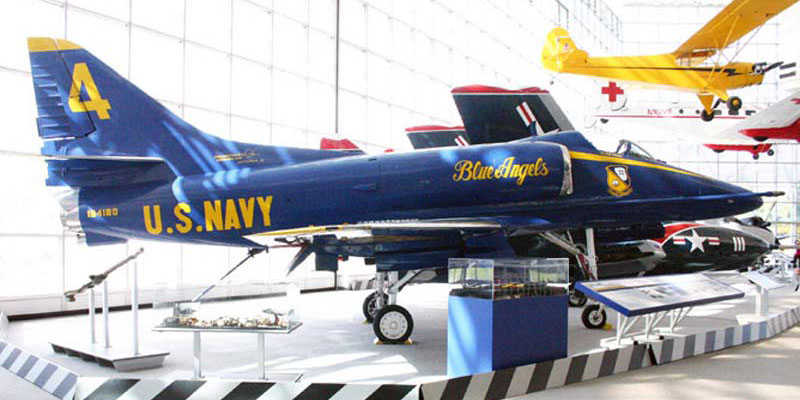

Photo: Robert Deering 9/3/2011
Seattle Museum of Flight
King County International Airport (BFI)
Seattle, Washington

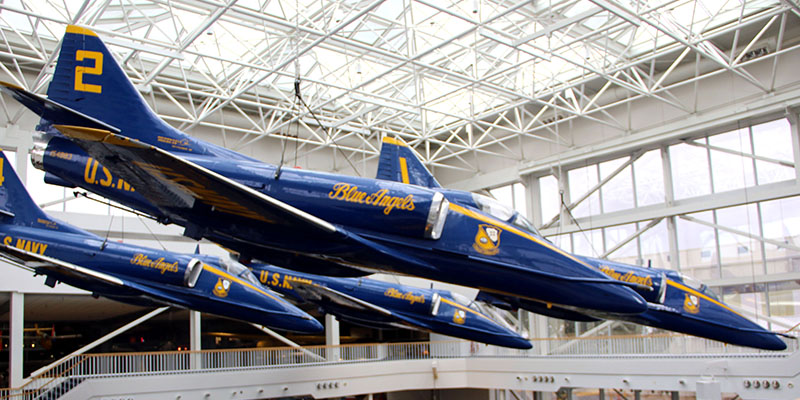

Photo: Robert Deering 4/18/2015
National Museum of Naval Aviation
NAS Pensacola (NPA)
Pensacola, Florida

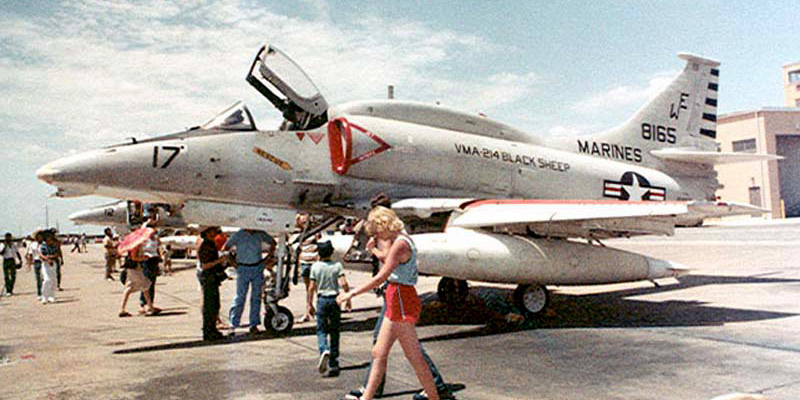

Photo: Robert Deering 1981
Carswell AFB (FWH)
Fort Worth, Texas

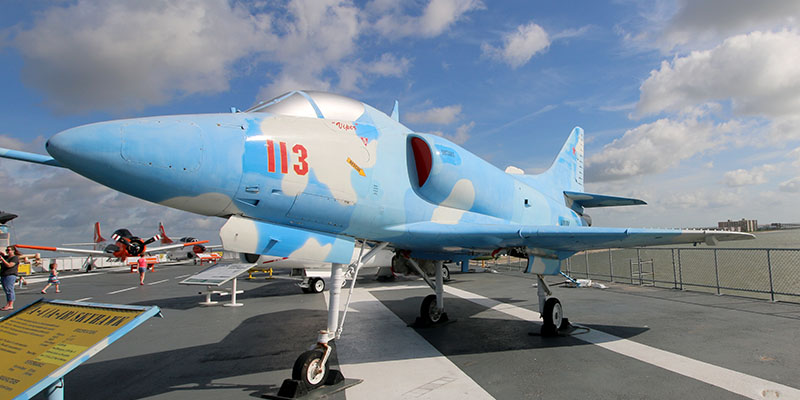

Photo: Robert Deering 6/27/2015
USS Lexington Museum (CV-16)
Corpus Christi, Texas


The Douglas A-4 "Skyhawk" was designed by the late Ed Heinemann in response to a Navy requirement for a fast (but compact) long-range, light-weight carrier jet aircraft capable of delivering a nuclear weapon. Prototype test results in 1954 confirmed that the "Skyhawk" exceeded all of the Navy's criteria. Because of its small size (wing span less than that of a Piper "Cub") and ease with which flight deck personnel could handle it in comparison with other jet aircraft, A-4s became known variously as either "Scooters", "Tinker Toys" or "Heinemann's Hot Rod".

An A-4 set a world speed record of over 695 mph in 1959 for class C aircraft over a 500 km course. Fitted with two 150 gallon under wing drop tanks, two A-4s flew 2,082 miles non-stop without in-flight refueling in a demonstration of its long-range capability. While original specifications limited the aircraft to 30,000 lbs fully loaded, various weight saving measures reduced that to 25,000 lbs - i.e. elimination of a heavy duty battery in favor of a fuselage stored wind driven generator; back-up hydraulic system eliminated by gravity dropped gear; and installation of a simplified air conditioning system one third the weight of those then available.

The A-4 was stress limited to 24,500 lb total weight for catapult launches, and 5,000 lb ordnance loads on a center line and four wing racks ranging from conventional bombs, to sophisticated weapons such as the Gatling gun, "Bullpup", "Walleye", "Shrike" and, in one case, "Sidewinder" air-to-air missiles. Built into the aircraft were two 20 mm cannons. The "Skyhawk" participated in the first raids of the Vietnam war and became one of the primary strike aircraft thereafter until replaced by the A-7 "Corsair" in the 1969 time-frame. An A-4C is credited with shooting down a MiG-17 over Vietnam. The A-4s endured the most losses of any carrier-based aircraft in Vietnam with the loss of 195 of them in combat including those piloted by Senator John McCain and Vice Admiral James Stockdale as well as the first two victims of surface-to-air guided missiles during that conflict. The A-4 also saw considerable combat action during the Arab/Israel and Falkland Island wars.

Nearly 3,000 A-4s were produced from 1956 to 1979 for use by the Navy and Marine Corps as well as Australia, Israel, Argentina and Kuwait. A two-seat trainer version (TA-4J) was still used by the Navy until late 1999.

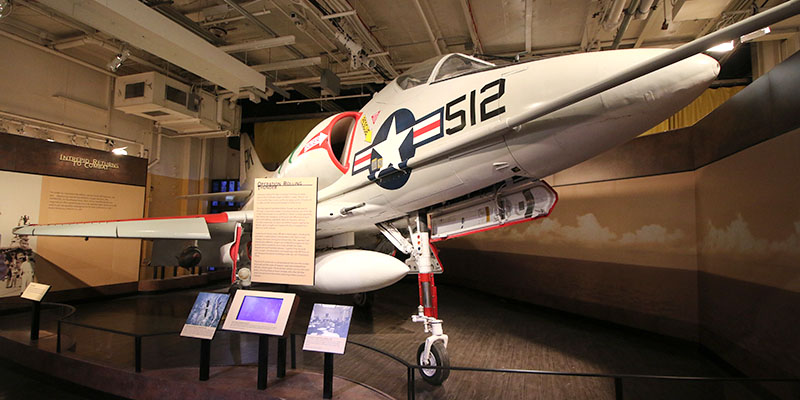

Photo: Robert Deering 6/13/2017
USS Intrepid Museum (CV-11)
New York City, New York

Photo: Robert Deering 6/26/2015
Bee County Courthouse
Beeville, Texas

SPECIFICATIONS: PERFORMANCE:
Span:  27 ft., 6 in.  Maximum speed:   673 mph at sea level
Length:  40 ft., 1 in. Cruising speed:
Height:  15 ft., 2 in. Range:  2,525 miles
Empty Weight:  9,853 lb. Service ceiling:  33,800 ft
Gross Weight:  24,500 lb.
Crew:  Pilot only
Engines:  Pratt & Whitney J-52-P-6
Armament:  Two 20mm cannon and up to 8,200 lb. of ordnance

SOURCE:  National Museum of Naval Aviation
