Convair
B-58
Hustler
Previous U.S. MILITARY Next

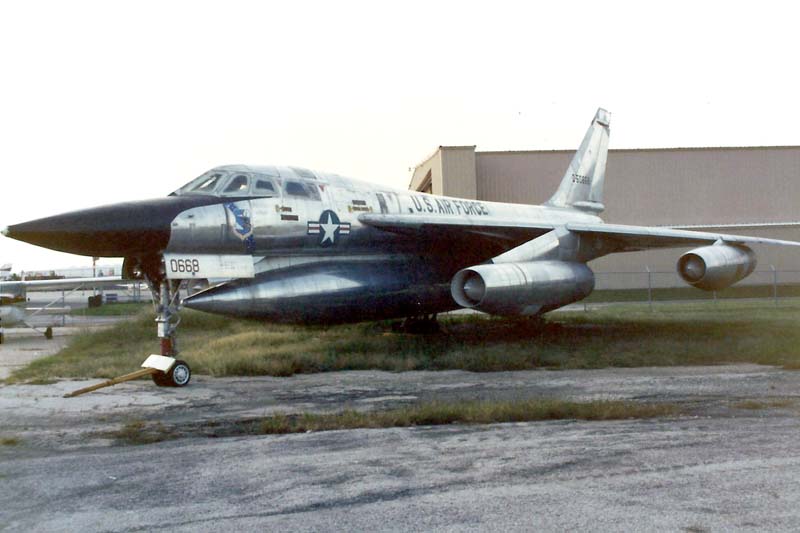

Photo: Robert Deering 1990
Meacham Airport (FTW)
Fort Worth, Texas
The U.S. Air Force's first operational supersonic bomber, the B-58 made its initial flight on Nov. 11, 1956. In addition to the Hustler's delta wing shape, distinctive features included a sophisticated inertial guidance navigation and bombing system, a slender "wasp-waist" fuselage and an extensive use of heat-resistant honeycomb sandwich skin panels in the wings and fuselage. Since the thin fuselage prevented the carrying of bombs internally, a droppable, two-component pod beneath the fuselage contained a nuclear weapon -- along with extra fuel, reconnaissance equipment or other specialized gear. The B-58 crew consisted of a pilot, navigator/bombardier and defense systems operator.

Convair built 116 B-58s: 30 test and pre-production aircraft and 86 for operational service. Hustlers flew in the Strategic Air Command between 1960 and 1970. Setting 19 world speed and altitude records, B-58s also won five different aviation trophies.

The B-58A on display (at the Air Force Museum) set three speed records while flying from Los Angeles to New York and back on March 5, 1962. For this effort, the crew received the Bendix and Mackay Trophies for 1962. It was flown to the museum in December 1969.

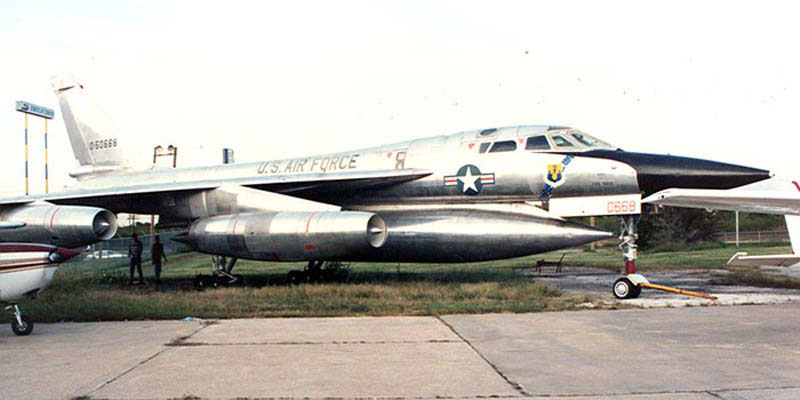

Photo: Robert Deering 1990
Meacham Airport (FTW)
Fort Worth, Texas
SPECIFICATIONS: PERFORMANCE:
Span:  56 ft. 10 in. Maximum speed:  1,325 mph
Length:  96 ft. 10 in. Cruising speed:
Height:  31 ft. 5 in. Range:  4,400 miles without aerial refueling
Empty Weight:   Service ceiling:  64,800 ft.
Gross Weight:  163,000 lbs. maximum
Crew:
Engines:  Four General Electric J79s of 15,000 lbs. thrust each (with afterburner)
Armament:  One 20mm cannon in tail; nuclear weapons in pod or on under-wing pylons

SOURCE:  National Museum of the United States Air Force

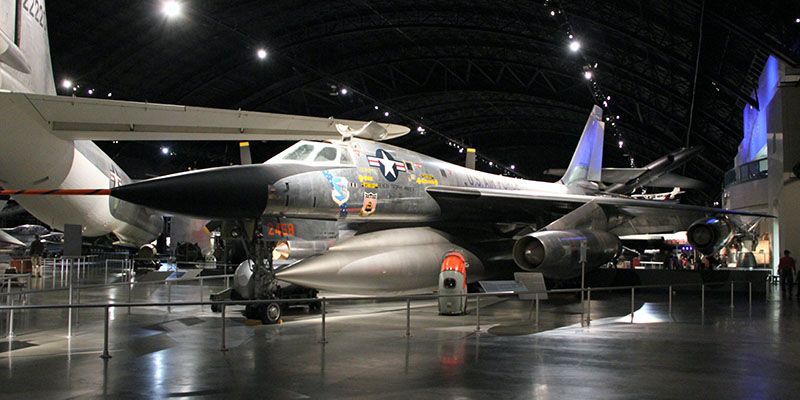

Photo: Robert Deering 10/18/2012
National Museum of the USAF
Wright-Patterson AFB (FFO)

Dayton, Ohio

1959 DOD Aircraft
Recognition Manual

USAF
Fact Sheet
