Boeing
P-26
Peashooter
Previous U.S. MILITARY Next

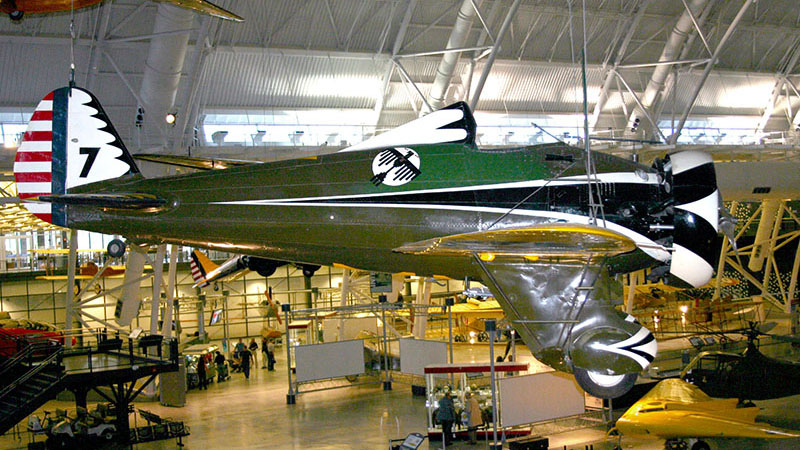

Photo: Robert Deering 11/13/2007
Smithsonian National Air and Space Museum
Dulles International Airport (IAD)

Chantilly, Virginia
The P-26A was the first all-metal monoplane pursuit plane produced for the U.S. Army Air Corps, affectionately called the "Peashooter" by its pilots. The Consolidated Y1P-25 was the first all-metal pursuit plane tested, but the production version -- P-30 -- was purchased after the initial P-26 orders.

The P-26 was also the last Army Air Corps pursuit aircraft accepted with an open cockpit, a fixed undercarriage, and an externally braced wing. Significantly faster in level flight than previous fighters, the P-26A's relatively high landing speed caused the introduction of landing flaps to reduce this speed.

Boeing initially designed the P-26 in 1931, designating it first as Model 248 and in December 1931 as the XP-936. The company provided three test airframes, which remained Boeing property, with the frugal Air Corps providing the engines, instruments and other equipment. The first flight occurred on March 20, 1932. The Army Air Corps purchased the three prototypes and designated them as Y1P-26s. The Air Corps purchased a total of 111 of the production version, designating them as P-26A, and 25 of later -B and -C models.
SPECIFICATIONS: PERFORMANCE:
Span:  27 ft. 11.5 in. Maximum speed:  234 mph/203 knots
Length:  23 ft. 10 in. Cruising speed:  199 mph/172 knots
Height:  10 ft. 5 in. Range:  360 statute miles/313 nautical miles
Empty Weight:  Service ceiling:  27,400 ft.
Gross Weight:  2,197 lbs. empty/2,955 lbs. (maximum)
Crew:  One
Engines:  Pratt and Whitney R-1340-27 of 600 hp
Armament:  Two fixed .30-cal. machine guns or one .50- and one .30-cal. machine gun; up to 200 lbs. of bombs

SOURCE:  National Museum of the United States Air Force

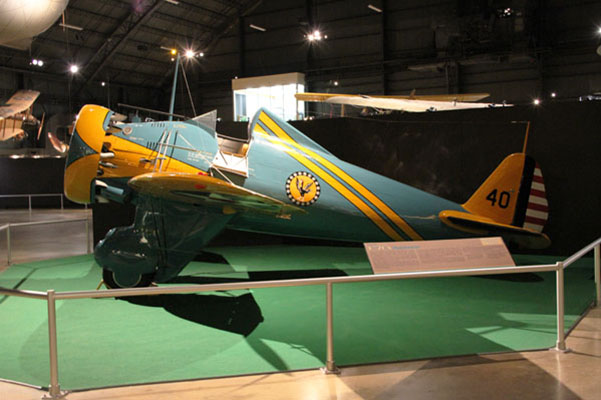

Photo: Robert Deering 10/18/2012
National Museum of the USAF
Wright-Patterson AFB (FFO)

Dayton, Ohio
