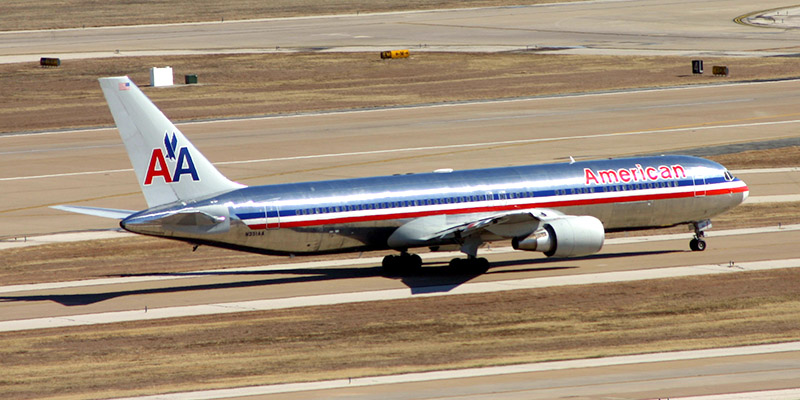

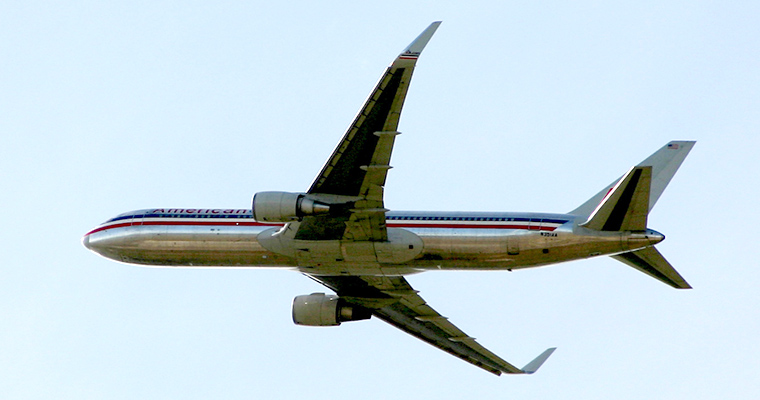

The Boeing 767 is a mid-size, wide-body twin-engine jet airliner built by Boeing Commercial Airplanes. It was the manufacturer's first wide-body twinjet and its first airliner with a two-crew glass cockpit. The aircraft features two turbofan engines, a conventional tail, and for reduced aerodynamic drag, a supercritical wing design. Designed as a smaller wide-body airliner than preceding aircraft such as the 747, the 767 has a capacity of 181 to 375 persons and a range of 3,850 to 6,385 nautical miles (7,130 to 11,825 km), depending on variant. Development of the 767 occurred in tandem with a narrow-body twinjet, the 757, resulting in shared design features which allow pilots to obtain a common type rating to operate both aircraft.

The 767 is produced in three fuselage lengths. The original 767-200 entered service in 1982, followed by the 767-300 in 1986 and the 767-400ER, an extended-range (ER) variant, in 2000. The extended-range 767-200ER and 767-300ER models entered service in 1984 and 1988, respectively, while a production freighter version, the 767-300F, debuted in 1995. Conversion programs have modified passenger 767-200 and 767-300 series aircraft for cargo use, while military derivatives include the E-767 surveillance aircraft, the KC-767 and KC-46 aerial tankers, and VIP transports. Engines featured on the 767 include the General Electric CF6, Pratt & Whitney JT9D and PW4000, and Rolls-Royce RB211 turbofans.

United Airlines first placed the 767 in commercial service in 1982. The aircraft was initially flown on domestic and transcontinental routes, during which it demonstrated the reliability of its twinjet design. In 1985, the 767 became the first twin-engined airliner to receive regulatory approval for extended overseas flights. The aircraft was then used to expand non-stop service on medium- to long-haul intercontinental routes. In 1986, Boeing initiated studies for a higher-capacity 767, ultimately leading to the development of the 777, a larger wide-body twinjet. In the 1990s, the 767 became the most frequently used airliner for transatlantic flights between North America and Europe.

As of April 2012, the 767 has received 1,090 orders from 71 customers, of which 1,023 have been delivered; 837 of these aircraft were in service in July 2011. The most popular variant is the 767-300ER, with 552 delivered, and Delta Air Lines is the largest operator, with 94 aircraft. Competitors have included the Airbus A300, A310, and A330-200, while a successor, the 787 Dreamliner, entered service in October 2011.

Specifications

	767-200	767-200ER	767-300	767-300ER	767-300F	767-400ER
Cockpit crew	Two
Seating capacity, typical	181 (3-class) 224 (2-class) 255; optional 290 (1-class)		218 (3-class) 269 (2-class) 350 (1-class)		N/A	245 (3-class) 304 (2-class) 375 (1-class)
Cargo capacity	2,875 ft³ (81.4 m³) 22 LD2s		3,770 ft³ (106.8 m³) 30 LD2s		15,469 ft³ (438 m³) 30 LD2s + 24 pallets	4,580 ft³ (129.6 m³) 38 LD2s
Length	159 ft 2 in (48.5 m)		180 ft 3 in (54.9 m)			201 ft 4 in (61.4 m)
Wingspan	156 ft 1 in (47.6 m)					170 ft 4 in (51.9 m)
Wing area	3,050 ft² (283.3 m²)					3,130 ft ² (290.7 m²)
Fuselage height	17 ft 9 in (5.41 m)
Fuselage width	16 ft 6 in (5.03 m)
Cabin width (interior)	15 ft 6 in (4.72 m)
Maximum fuel capacity	16,700 US gal (63,000 L)	24,100 US gal (91,000 L)	16,700 US gal (63,000 L)	24,100 US gal (91,000 L)
Operating empty weight	176,650 lb (80,130 kg)	181,610 lb (82,380 kg)	189,750 lb (86,070 kg)	198,440 lb (90,010 kg)	190,000 lb (86,180 kg)	229,000 lb (103,870 kg)
Maximum takeoff weight	315,000 lb (142,880 kg)	395,000 lb (179,170 kg)	350,000 lb (158,760 kg)	412,000 lb (186,880 kg)	412,000 lb (186,880 kg)	450,000 lb (204,120 kg)
Maximum range at MTOW	3,850 nmi (7,300 km) transatlantic	6,385 nmi (11,825 km) transpacific	4,260 nmi (7,900 km) transatlantic	5,990 nmi (11,065 km) transpacific WL: 6,310 nmi (11,690 km)	3,255 nmi (6,025 km) transcontinental WL: 3,575 nmi (6,621 km)	5,625 nmi (10,415 km) transpacific
Cruise speed	Mach 0.80 (470 knots, 530 mph, 851 km/h at 35,000 ft (11,000 m) cruise altitude)
Maximum cruise speed	Mach 0.86 (493 knots, 567 mph, 913 km/h at 35,000 ft (11,000 m) cruise altitude)
Takeoff distance at MTOW (sea level, ISA)	5,800 ft (1,768 m)	8,300 ft (2,530 m)	7,900 ft (2,410 m)	8,300 ft (2,530 m)	8,600 ft (2,621 m)	10,200 ft (3,109 m)
Engines (x2)	P&W JT9D-7R4 P&W PW4000-94 GE CF6-80A GE CF6-80C2	P&W PW4000-94 GE CF6-80C2	P&W JT9D-7R4 P&W PW4000-94 GE CF6-80A GE CF6-80C2	P&W PW4000-94 GE CF6-80C2 RR RB211-524H		P&W PW4000-94 GE CF6-80C2
Thrust (x2)	GE: 50,000 lbf (222 kN)	PW: 63,300 lb (282 kN) GE: 62,100 lbf (276 kN)	PW: 50,000 lbf (220 kN)	PW: 63,300 lbf (282 kN) GE: 62,100 lbf (276 kN) RR: 59,500 lbf (265 kN)		PW: 63,300 lbf (282 kN) GE: 63,500 lbf (282 kN)

Source: Wikipedia
