AIRCRAFTTwin Engine Products
Models
500S and 520:
The
original Twin Commander. The
prototype design was certified
by the CAA, the predecessor
organization to the FAA, in
1950. The first 500S rolled off
the assembly line in August of
1951. The 500S was known as the
Shrike Commander.
Despite its shorter length
compared to later models, the
500S could comfortably carry
seven passengers and 350 lbs. of
luggage. The plane had a maximum
range of 693 nautical miles that
was considered long for light
aircraft of the time period. The
unpressurized cabin and piston
engines limited the 500S to a
15,000 ft. ceiling. A prototype
of the 500S is the model that
completed the historic single
engine flight from Oklahoma City
to Washington D.C. in May of
1951.
Models 560 and 560A: Replaced
the 500S and 520 models in 1954.
The success of the 500S and 520
models allowed engineers at the
Aero Design & Engineering Co. to
design a larger cabin into the
560A model by adding 10 inches
to the overall length of the
fuselage. In addition, the 560
series featured improved and
more powerful Lycoming piston
engines that led to significant
performance improvements over
the 500S and 520. The 560 series
marked a significant milestone
for the Twin Commander as well
as the general aviation
industry. Later variants of the
560 featured more powerful
engines, 32 inch winch tip
extension, hydraulics
modifications, redesigned
landing gear, fuel injection
engines and minor fuselage
changes.
The military
version of the Model 560 was
originally designated as
L-26, but was changed
in 1962 to
U-4
for the U. S. Air Force and
U-9 for the U.
S. Army.
Two aircraft were assigned to
the White House and the
L-26 / U-4
was used by President Dwight D. Eisenhower from 1956 to
1960 for short trips. It was the smallest Air Force One,
and the first presidential aircraft to have only two
engines. It was also the first presidential
aircraft to carry the familiar blue and white paint
scheme.
Model 680FL:
Introduced in May of 1963 as the
“Grand Commander”.
This was the first Twin
Commander model featuring the
lengthened fuselage seen on
later Turbine and JetProp
powered models. Two sections
were added to the plane, a 44
inch section forward of the
front spar and a 30 inch section
aft of the front spar. This
added over six feet to the
length of the plane, bringing
overall length to over 42 feet.
The Twin Commander offered
leading cabin area space per
occupant and the plane’s gross
weight rating increased to 8,500
lbs.
Model 680V:
Introduced the large under wing
picture windows that offered
rear cabin occupants an
unprecedented outward view from
the plane. These windows would
become a Twin Commander
trademark in future years.
Model 680T:
The
growing use of jet engines
throughout the 1960’s by
commercial airlines led to
demand by the general aviation
market for increased aircraft
speed. This market demand
increased in the late 1960’s
with the introduction of small
jet engines for use in jet
powered business aircraft. In
response to this demand for
increased speed, the Company
undertook design and
certification work for the first
turbine powered Twin Commanders
during 1964 and 1965. The first
turbine powered Twin Commander
was the 680T called the “Turbo
Commander” that used Garrett
AiResearch TPE331 turbine
engines. The increased power of
the Garrett AiResearch engines
allowed for a gross weight
rating of just under 9,000 lbs.,
better flight performance
characteristics and increased
take off power. The high gross
weight rating and additional
power required certain
configuration changes to the
airframe that altered the flight
characteristics of the plane.
The 690A and 690B models that
followed the 680T were the
primary turboprop Twin Commander
models.

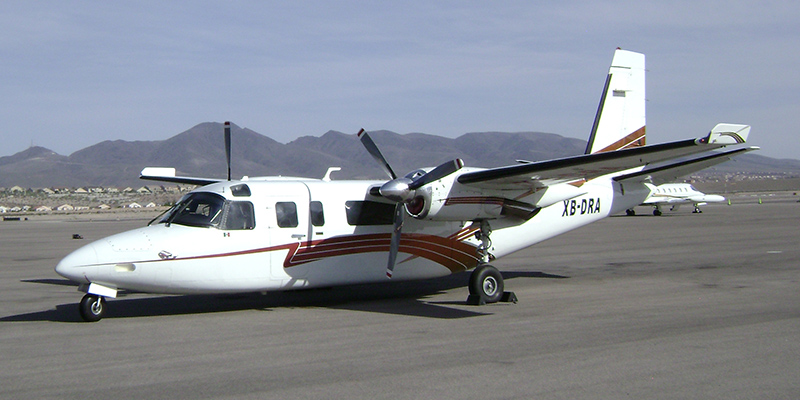

Model
690A:
First
produced in 1973, the 690A
represented a significant
advancement for turboprop Twin
Commander aircraft. This model
used the more powerful 251K
variant of the AiResearch TPE331
power plant and Hartzell
propellers. Airframe changes
included an increase of 30
inches at the center wing
section, increased rudder area,
enlarged dorsal fin and longer
tail cone. These changes allowed
for a gross weight rating of
9,600 and baggage capacity of
600 lbs., the highest for a Twin
Commander. Other changes such as
the addition of a heated
windshield, increased cabin
pressure differential and
standard de-icing equipment,
changed the maximum ceiling
rating from 25,000 feet to
31,000 feet.
Model 690B:
First flew in 1976 and was
similar to the 690A with
increased weight ratings, two
engine options and several
modifications to the cabin
interior including larger
baggage space.
Model 840:
Major changes were made to the
Twin Commander with the
introduction of the model 840 in
1979. The wings were increased
30 inches and canted winglets
were added to increase total
wing area. The 254K variant of
the AiResearch gas turbine
TPE331 engines were used that
generated 717.5 shaft horsepower
each with new Dowty full
feathering and reversible
propellers. Wet wings were added
outboard of the nacelles
increasing fuel capacity from
384 to 482 gallons. The
increased fuel capacity of the
wet wings and fuel efficiency of
the new engines allowed the 840
to have a maximum range of 2,040
nautical miles. It was the first
Twin Commander to break the
2,000 nautical mile range
barrier. Aircraft dry weight
decreased by 507 lbs. over the
690B.
Model 980:
Same as the 840 except for the
more powerful Honeywell
TPE331-511k engines with 733
shaft horsepower. These engines
decreased the time to climb to
an altitude of 20,000 feet from
9.5 minutes on the 840 to 7.2
minutes on the 980.
Model 900:
Released in 1981 Model 900
featured continued advancement
of the engines and capabilities
of the plane. Shaft horsepower
increased to 748.3 per engine
while landing weight increased
almost 1,000 lbs. over previous
models to 10,550 lbs. The most
important advancement of the
model 900 was the interior
layout. Without extending the
overall length of the fuselage,
the cabin interior was
lengthened by three feet
increasing total cabin volume to
278 square feet. This change
gave the model 900 one of the
best cabin volume per passenger
ratings in its segment. The
model 900 and model 1000 (below)
were the only two models
designed and released under
Gulfstream ownership.
Model 1000:
The most advanced version of the
Twin Commander. The first
version of the 1000 (695A) was
certified in April, 1981 and was
the same aircraft as the model
900 except that it used
Honeywell TPE331-511k engines,
better known as Dash 10. In
February, 1984 a second version
of the model 1000 was released
(695B) that used Dash 10
engines, raising shaft
horsepower output to 820 per
engine. This gave the aircraft a
maximum cruising speed of 308
knots and maximum range of 2,080
nautical miles on 482 gallons of
fuel. The maximum ceiling rating
increased to 35,000 feet. Weight
ratings also increased slightly
over the model 900. Minor
structural changes were made to
the 1000 to accommodate the
increased weight ratings and
engine power.

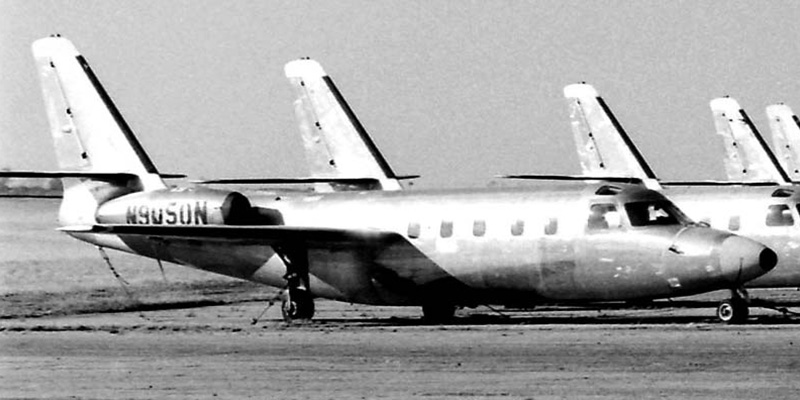

Model 1121 Jet
Commander: Twin jet engine
midwing business aircraft
introduced in 1963 with
deliveries beginning in 1965.
After Aero Commander was acquired by North
American Rockwell, the Jet Commander was sold to Israel
Aircraft Industries (IAI) in
1968 thus leaving the North
American Sabreliner as the sole
business jet in the product
line. IAI made some
modifications to the Jet
Commander design and sold it as
the IAI 1123 and 1124 Westwind.
Single Engine Products
Model 100:
Various
models of which were known as
the
Darter Commander and
Lark Commander was a high-wing,
single engine monoplane of conventional
design, equipped with fixed
tricycle undercarriage.
The aircraft was originally
designed by Volaircraft, first
flying in 1960. The firm
marketed the original three-seat
version as the
Volaire 1035
and a four-seat version with a
more powerful engine as the
Volaire 1050
before North American Rockwell
purchased all rights to the
design in 1965 for production by
its Aero Commander division.
Production of the
Darter Commander
version continued until 1969 and
of the revised
Lark
Commander
until 1971.
Model 112:
The
Rockwell Commander 112
is a four-seat,
single piston-engine monoplane
of original design produced from
1972 to 1979.
Variations include the 112A,
112B, 112TC, and 112TCA.
Model 114:
An improved version of the Model
112 that was produced from 1976
to 1979 by
Rockwell
international. It
was also produced as the
Commander 114B and
114TC by the
Commander Aircraft
Company from 1992 to
2002.
Model 200:
Single-engine four-seat low-wing
piston-engine civil utility
aircraft with retractable
tricycle undercarriage.
Design rights were purchased
from Meyers Aircraft Company and
sold to Interceptor Corporation
in 1968 after only 77 Aero
Commander 200's were completed.
Retractable tricycle
undercarriage.
Ag Commander A-9:
(1950s) Single-engine one-seat
low-wing aerial application
aircraft. Horizontally opposed
piston engine. Fixed tail wheel
undercarriage. Design rights
were purchased from CallAir
Aircraft and was originally known as the CallAir A-9.
Ag Commander S-2 Thrush:
(1956) Single-engine one-seat
low-wing aerial application
aircraft. Radial piston engine.
Fixed tail wheel undercarriage.
Design rights were purchased
from Ayres Aircraft and was
originally known as as the Ayres Thrush
(aka Snow S-2). The
Ag
Commander brand was dropped in
1970.
Sources:
Wikipedia and Twin Command LLC
