RotorWay


Scorpion

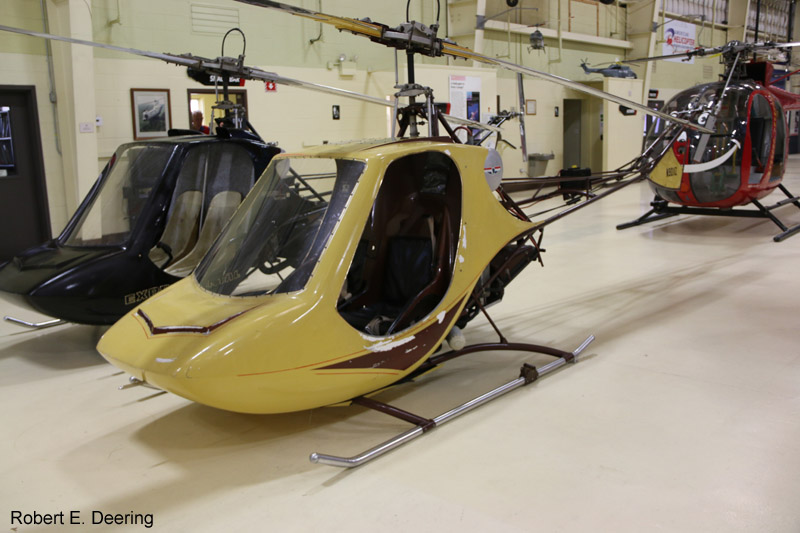

Photo: Robert Deering 7/16/2014
American Helicopter Museum
Brandywine Airport (OQN)
West Chester, Pennsylvania
RotorWay Scorpion

The Scorpion line of helicopters was manufactured by RotorWay International.  Derived from an original design by B.J. Schramm, the Schramm Javelin evolved into the Schramm Scorpion, both of which were developed by the Schramm Aircraft Company. A new company, RotorWay Aircraft Inc., was formed to market and produce plans and kits for the Scorpion, described as a production version of the earlier Javelin. Production of kits started in 1967 with the original Scorpion model, and ended with the discontinuation of the Scorpion 145 in 1984.



Scorpion

The Scorpion prototype was built in 1966, followed by the production of Scorpion kits in 1968.



Scorpion Too

The Scorpion Too, or Scorpion II, was the first two-seater manufactured by RotorWay. It took about 2,000 hours to complete.



Scorpion 133

Introduced in 1976, the Scorpion 133 was no different from the Scorpion Too, except for the new RW133 engine installed. This engine, the first built by RotorWay, was a 4 cylinder, 4 cycle, 133 horsepower (99 kW) engine. In 1977, because of the increased engine power, the length of the Scorpion's blades increased, from 24 feet (7.3 m) to 25 feet (7.6 m).



Scorpion 145

Produced briefly in 1984, the Scorpion 145 mounted the RW145 engine developed by RotorWay.

RotorWay International

 RotorWay International, located in Chandler, Arizona, is a manufacturer of kit helicopters. The company was founded by B.J. Schramm in 1961 as RotorWay Aircraft. RotorWay International was bought February 14, 2007 by a small group of investors comprising the company's upper level management — Grant Norwitz, CEO, Bill Adams, COO, and Judy Craven, CFO. Of these, only Norwitz is still with the company as of mid-2008.



1960-1970



In 1961, RotorWay's founder, B.J. Schramm, tested the company's first prototype, the Javelin. The Javelin used a 40 hp (30 kW) motorcycle engine, and was the forerunner of RotorWay's first production helicopter, the Scorpion, which was offered in 1967.



The Scorpion, priced at $6,300 (not including the cost of the engine), was the first real kit helicopter on the market that flew. The Scorpion was intended for the sport-flying public, rather than the commercial market and this dictated the cost and weight of the aircraft. Originally, costs were intended to be under $10,000, but inflation changed that. The original Scorpion weighed between 1200 and 1300 pounds. It featured a standard gear reduction drive, a semi-articulated two-bladed rotor system, and a one-person capacity.



1970-1979



An improved version of the Scorpion was introduced in 1971. Among the modifications in the new version were all-aluminum rotor blades, a 115 hp (86 kW) OMC 2-cycle engine (Evinrude Vulcan V-4 outboard motor) and a heavier drive system (shafts and bearings).



In 1971, the Scorpion II was introduced with an OMC 125 hp (93 kW), 2-cycle engine which provided enough power to fly two lightweight people, unlike previous versions.



In 1974, the company eliminated the 2-cycle engine and, unable to find a manufacturer to make their 4-cycle engine suitable for the helicopter, began production of their own engine. This engine, called the RotorWay RW133, was a 4-cycle engine that was able to provide a cruise speed of 80 mph (130 km/h) with a range of 120 miles (193 km) and a useful load of 420 pounds.



The RW 133 engine was installed in the Scorpion II, which was renamed the Scorpion 133. The Scorpion 133 had a list price of $13,500, a gross weight of 1,235 lb (560 kg), and a range of 130 nautical miles (79 nautical miles (146 km) with two people).



1980-1989



In 1980, RotorWay introduced the RW145 engine, and the Exec helicopter. This was the first helicopter produced by RotorWay that strived to get away from the "kit helicopter" look. Unlike previous helicopters, the Exec did not have an exposed frame or exposed engine and far more attention was given to the aesthetics of the aircraft.



1982 marked the introduction of the asymmetrical rotor blade, enabling the craft to climb to higher altitudes and making the blade resistant to erosion, but with a risk of losing the aircraft if the engine quit.



The Elete helicopter was designed during the late 1980s, and had a 152 hp (113 kW) engine with a maximum payload of 400 pounds, cruise speed of 113 mph (182 km/h) and maximum airspeed of 130 mph (210 km/h). After selling just three Elete helicopters, the company succumbed to financial challenges and was purchased by a former customer, John Netherwood, and stopped production of the Elete helicopter due to design hurdles and financial constraints on the company.



The RW152 engine was manufactured in 1984.



1990-present



In 1990 RotorWay Aircraft underwent reorganization and changed its name to RotorWay International.



The design and production of the Exec series helicopters began in the early 1990s, starting with the Exec 90. The Exec 90 contained the RI 162 engine, and, unlike previous helicopter kits, much of the assembly, including the welding, was done at the factory. The Exec 90 was followed by the Exec 162F in 1994.



The Exec 162F, with some improvements to the FADEC system and the ACIS, is still being produced and sold by RotorWay.



In July 2007, RotorWay announced the development of the A600 Talon. The A600 Talon features an updated FADEC system, an all-glass cockpit, a cog-belt replacing the primary drive chain, and a larger landing gear, among other features.



In February 2009, RotorWay purchased PMC Machining and Manufacturing, a Phoenix-based builder of helicopter parts. The CEO of PMC, Mark Porter, became president and COO of RotorWay as part of the acquisition. The company also announced plans to certify a two-seat turbine helicopter using the Rolls-Royce RR300 engine and said that acquiring PMC will make that possible.



Source: Wikipedia
