Piper
PA18
Super Cub

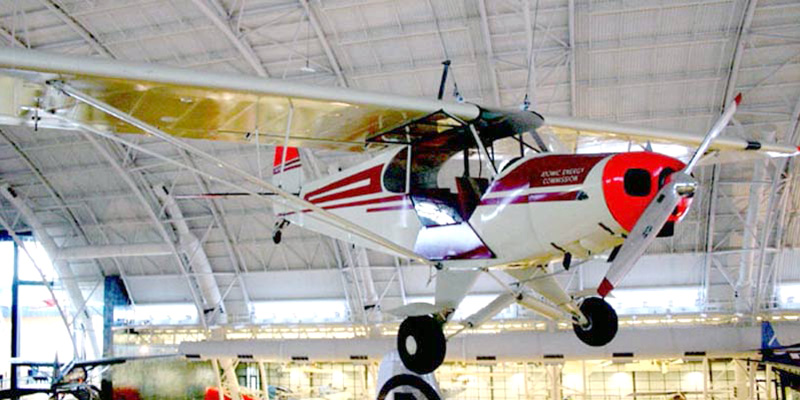

Photo: Robert Deering 10/23/2006
Smithsonian National Air and Space Museum
Dulles International Airport (IAD)

Chantilly, Virginia
The PA-18 Super Cub was a strengthened PA-11, itself a modification of the original J-3 Cub. With only a few minor changes and a 150-horsepower engine, the PA-18 still looked like a Cub, although it came in several paint schemes and lacked the familiar bear logo on its tail. About 8,500 Super Cubs were built at Lock Haven, Pennsylvania, and they proved popular as private and utility aircraft and as military trainers.

Materials:
Fuselage: steel tube with fabric cover

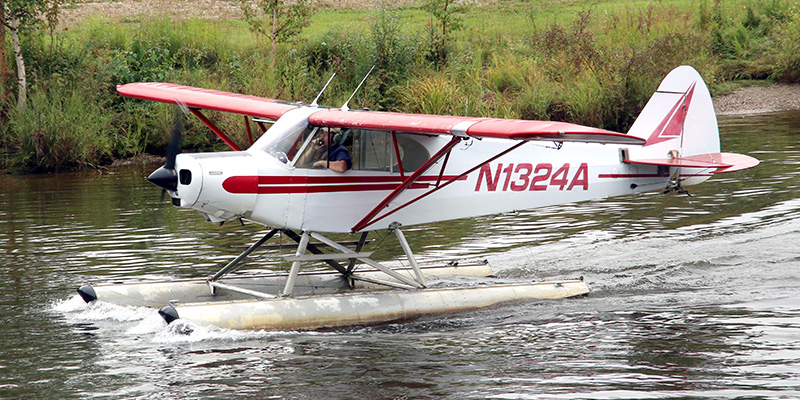

Photo: Robert Deering 8/23/2018
Fairbanks, Alaska
SPECIFICATIONS: PERFORMANCE:
Span: 10.7 m (35 ft 2 in)
Length:   6.8 m (22 ft 4 in)
Height:  2 m (6 ft 8 in)
Empty Weight:  360 kg (790 lb)

Gross Weight:  680 kg (1,500 lb)
Crew:
Maximum speed: 206 km/h (128 mph)
Cruising speed:
Range:
Service ceiling:
Engines: Lycoming O-320, 150 hp

SOURCE:
