North American
F-107
#
Previous U.S. MILITARY Next

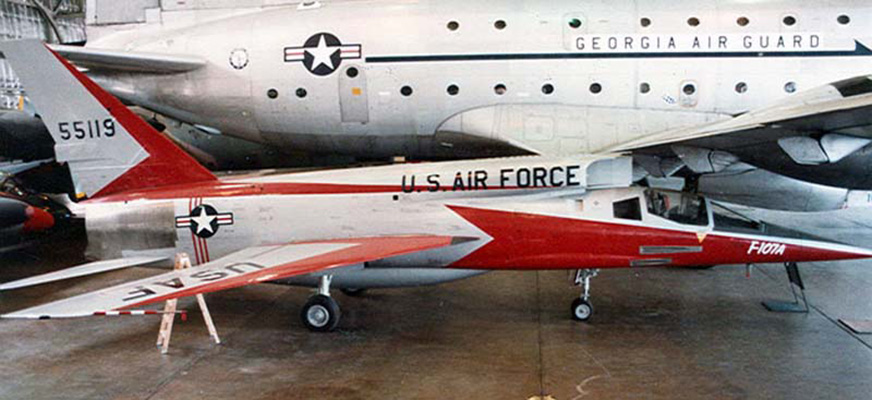

Photo: Robert Deering 1985
National Museum of the USAF
Wright-Patterson AFB (FFO)

Dayton, Ohio
The F-107A was originally designed as a tactical fighter-bomber version of the F-100, with a recessed weapon bay under the fuselage; however, extensive design changes resulted in its redesignation from F-100B to F-107A before the first prototype flew. Special features included an all-moving vertical fin, a control system that permitted the plane to roll at supersonic speeds, and a system (Variable Area Inlet Duct) that automatically controlled the amount of air fed to the jet engine.

On Sept. 10, 1956, the No. 1 F-107A made its initial flight, attaining Mach 1.03 (speed of sound, Mach 1, is about 760 mph at sea level). The aircraft first achieved Mach 2 (twice the speed of sound) in tests on Nov. 3, 1956. Three F-107As were built as prototypes and were test flown extensively, but the aircraft did not go into production, the Republic F-105 having been selected as the standard fighter-bomber for the Tactical Air Command. In late 1957, Nos. 1 and 3 were leased to the National Advisory Committee for Aeronautics for high-speed flight research.
SPECIFICATIONS: PERFORMANCE:
Span: 36 ft. 7 in.
Length:  60 ft. 10 in.
Height:  19 ft. 8 in.
Empty Weight:

Gross Weight:  41,537 lbs. maximum
Crew: One
Maximum speed: Mach 2-plus
Cruising speed: 600 mph
Range: 1,570 miles
Service ceiling: 48,000 ft.
Engines: Pratt & Whitney J75 of 23,500 lbs. thrust (with afterburner)
Armament:  Four 20mm cannons, 108 2.75-in. rockets and up to 4,000 lbs. of bombs

SOURCE: National Museum of the United States Air Force

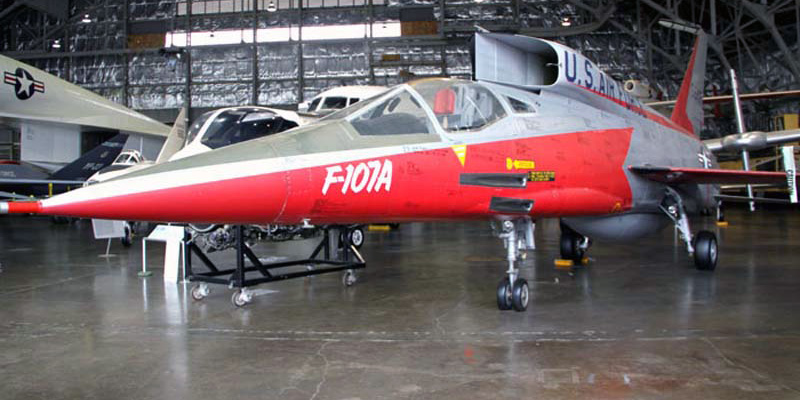

Photo: Robert Deering 10/18/2012
National Museum of the USAF
Wright-Patterson AFB (FFO)

Dayton, Ohio
