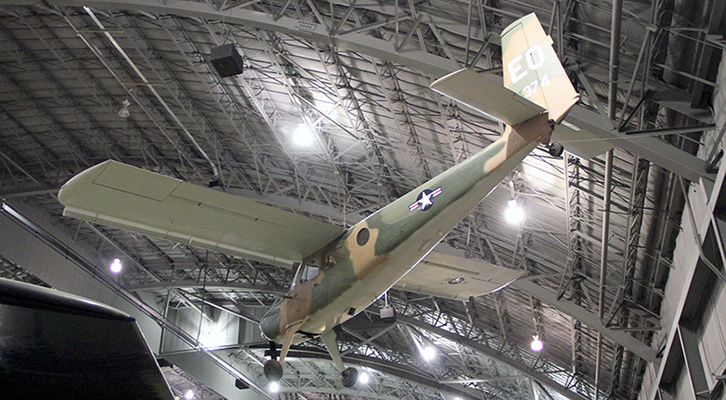

Photo: Robert Deering 10/18/2012
National Museum of the USAF
Wright-Paterson AFB (FFO)
Dayton, Ohio
The Super Courier was a light utility transport developed from a civilian design first tested in 1949. Its short takeoff and landing (STOL) capability allowed it to operate from a clearing the size of a football field, and its ability to fly slowly at speeds of approximately 25-35 mph made it an excellent aircraft for visual reconnaissance. The original version of the U.S. Air Force Super Courier made its first flight in 1958. The USAF purchased three aircraft for evaluation the same year, designating them L-28As and later redesignating them U-10As.

Eventually, more than 100 additional U-10As were ordered, mainly for use by air commando units in Southeast Asia. It was used for liaison, light cargo, small supply drop operations, psychological warfare (dropping leaflets and broadcasting propaganda), forward air controller (FAC) and reconnaissance missions.
SPECIFICATIONS: PERFORMANCE:
Span:  39 ft. Maximum speed:  180 mph
Length:  30 ft. 8 in. Cruising speed:  160 mph
Height:  8 ft. 10 in. Range:  1,100 miles
Empty Weight:  Service ceiling:  20,500 ft.
Gross Weight:  3,600 lbs. loaded
Crew:  One (plus five passengers)
Engines:  One Lycoming GO-480 six-cylinder engine of 295 hp
Armament:  None

SOURCE:  National Museum of the United States Air Force
