Grumman
F-9 / F9F
Panther
Previous U.S. MILITARY Next

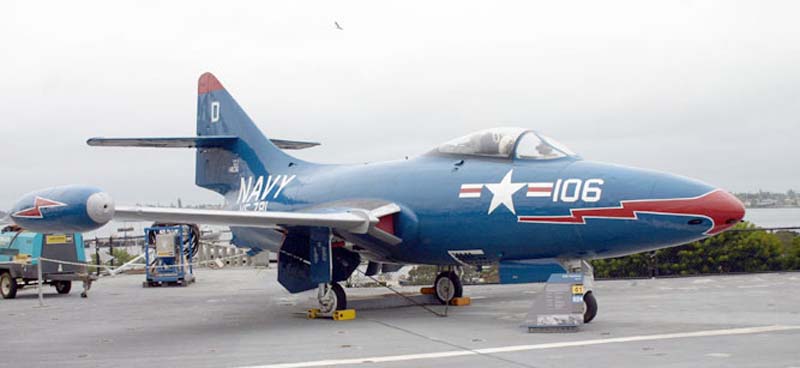

Photo: Robert Deering 6/28/2010
USS Midway Museum (CV-41)
San Diego, California
The Grumman F9F Panther was the manufacturer's first jet fighter and one of the U.S. Navy's first successful carrier-based jet fighters. The Panther was the most widely used U.S. Navy jet fighter of the Korean War, flying 78,000 sorties and scoring the first air-to-air kill by the US Navy in the war, the downing of a North Korean Yakovlev Yak-9 fighter. Total F9F production was 1,382, with several variants being exported to Argentina. The Panther was the first jet aircraft used by the Blue Angels flight team, being used by them from 1949 through to late 1954.

F9F-2s, F9F-3s and F9F-5s served with distinction in the Korean War, mainly as attack aircraft, showing noticeable resistance to anti-aircraft fire; despite their relative slow speed, they also managed in downing two Yak-9s and five Mikoyan-Gurevich MiG-15s for the loss of two F9Fs. The type was the primary Navy and USMC jet fighter and ground-attack aircraft in the Korean War. Future astronaut Neil Armstrong flew the F9F extensively during the war, even ejecting from one of the aircraft when it was brought down by a wire strung across a valley. Future astronaut John Glenn and Boston Red Sox All Star Ted Williams also flew the F9F as Marine Corps pilots.

Panthers were withdrawn from front-line service in 1956, but remained in training roles and with Naval Air Reserve and Marine Air Reserve units until 1958, some continuing to serve in small numbers into the 1960s.

SPECIFICATIONS: PERFORMANCE:
Span:  38 ft 0 in (11.6 m) Maximum speed:  500 kn (575 mph, 925 km/h)
Length:  37 ft 5 in (11.3 m) Cruising speed:
Height:  11 ft 4 in (3.8 m) Range:  1,300 mi (1,100 nmi, 2,100 km)
Empty Weight:  9,303 lb (4,220 kg) Service ceiling:  44,600 ft (13,600 m)
Gross Weight:  16,450 lb (7,462 kg)
Crew:  Pilot
Engines:  1 × Pratt & Whitney J42-P-6/P-8 turbojet, 5,950 lbf (26.5 kN) with water injection
Armament:
  • Guns: 4 × 20 mm (0.79 in) M2 cannon, 190 rpg
  • Hardpoints: Underwing hardpoints and provisions to carry combinations of:
    • Rockets: 6 × 5 in (127 mm) rockets on underwing hardpoints
    • Bombs: 2,000 lb (907 kg) of bombs

SOURCE:  Wikipedia

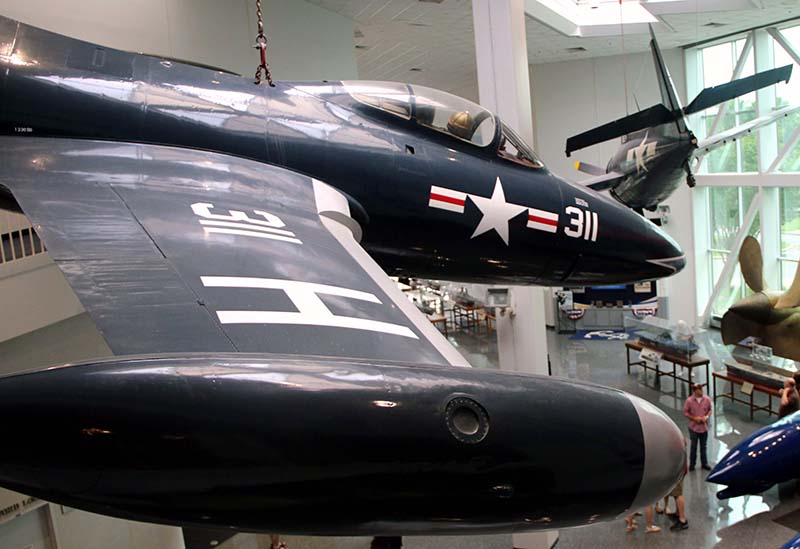

Photo: Robert Deering 4/18/2015
National Museum of Naval Aviation
NAS Pensacola (NPA)

Pensacola, Florida


1959 DOD Aircraft
Recognition Manual Page
