Do 335 A
Pfeil (Arrow)

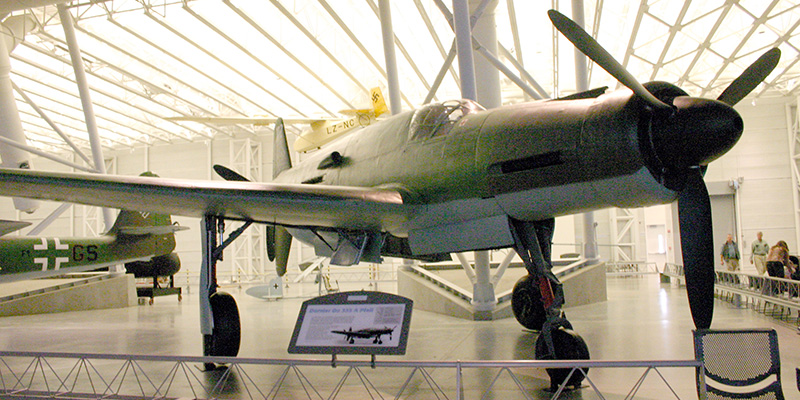

Photo: Robert Deering 10/23/2006
Smithsonian National Air and Space Museum
Wright-Patterson AFB (FFO)
Chantilly, Virginia


The Dornier Do 335 Pfeil was a World War II German fighter aircraft which was fielded by the Luftwaffe from 1944. The Pfeil had a unique design in which one engine was fixed forward in the nose, and the other was fitted aft, behind the tail. It was designed by Claudius Dornier in 1937 and was manufactured by the Dornier Flugzeugwerke. The Do 335 flew for the first time in October 1943 and entered active service in November 1944. During the test flights, it performed very well, showing no structural defects. Although it was fast and maneuverable, this radical fighter was delivered too late and too few to alter the outcome of the war. Only 38 units were produced.

Specifications

The Dornier Do 335 Pfeil was powered by two Daimler-Benz DB 603A 12-cylinder engines, rated at 1,726 hp each. It had a wingspan of 45 ft 1 inch and a length of 45 ft 5 inches. The Pfeil could reach a maximum speed of 474 mph and had a range of 857 miles. Its service ceiling was 37,000 ft. The Do 335 was armed with two 20mm MG 151 cannons, and one 30mm MK 103 cannon, mounted in the nose to fire through the propeller shaft. It could transport up to 1,000 kg of bombs.

Source: HistoryWarWeapons.com


Photo: Robert Deering 10/23/2006
Smithsonian National Air and Space Museum
Wright-Patterson AFB (FFO)
Chantilly, Virginia
