Curtiss
P-36
Hawk
Previous U.S. MILITARY Next

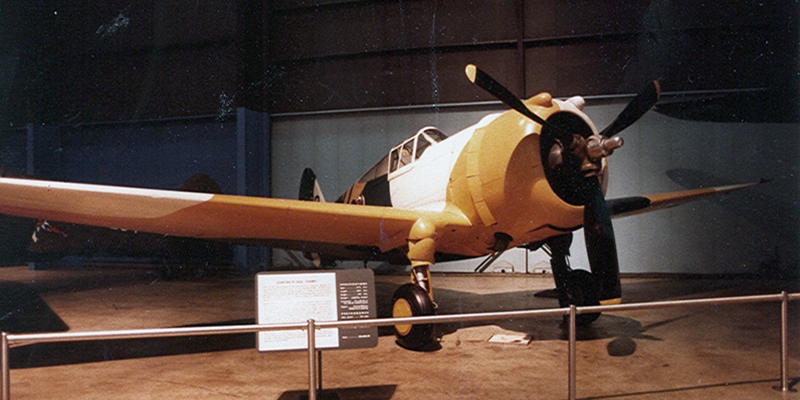

Photo: Robert Deering 1985
National Museum of the USAF
Wright-Patterson AFB (FFO)
Dayton, Ohio
The P-36 was developed from the Curtiss Hawk Model 75, a prototype participant in a series of design competitions held by the Air Corps between 1935 and 1937. After initial setbacks in early competitions, the aircraft was equipped with a new Pratt & Whitney R-1830 engine. The Air Corps was so impressed by the performance of the P-36 that it ordered 210 of the aircraft, the largest military order of a single airplane type since World War I. Including 30 P-36G export models seized by the U.S. government in 1942 because of the German occupation of Norway, the Army Air Forces possessed a total of 243 P-36s [three P-36s (S/N 37-68 to 70); 210 P-36As (S/N 38-001 to 210); 30 P-36Gs (S/N 42-38305 to 38322 and 108995 to 109006)] .

Both France and England used the Hawk 75A in combat over Europe in 1939 and 1940, even though the airplane was obsolescent when compared to its major adversary, the Messerschmitt 109. During 1941, the AAF transferred 39 of its P-36s to Hawaii and 20 to Alaska, and with the Japanese attack on Pearl Harbor, two of the first six AAF fighters to get off the ground to meet the enemy were P-36s. Following the outbreak of hostilities, the outmoded P-36 was relegated to training and courier duties within the United States.
SPECIFICATIONS: PERFORMANCE:
Span:  37 ft. 4 in. Maximum speed:  313 mph
Length:  28 ft. 6 in. Cruising speed:  250 mph
Height:  8 ft. 5 in. Range:   830 miles
Empty Weight:  Service ceiling:  32,700 ft.
Gross Weight:  5,650 lbs. loaded
Crew:
Engines:  Pratt & Whitney R-1830-13 of 1,050 hp
Armament:  Two .30-cal. or two .50-cal. machine guns

SOURCE:  National Museum of the United States Air Force

Photo: Robert Deering 10/18/2012
National Museum of the USAF
Wright-Patterson AFB (FFO)
Dayton, Ohio
