Cessna
C402
Businessliner

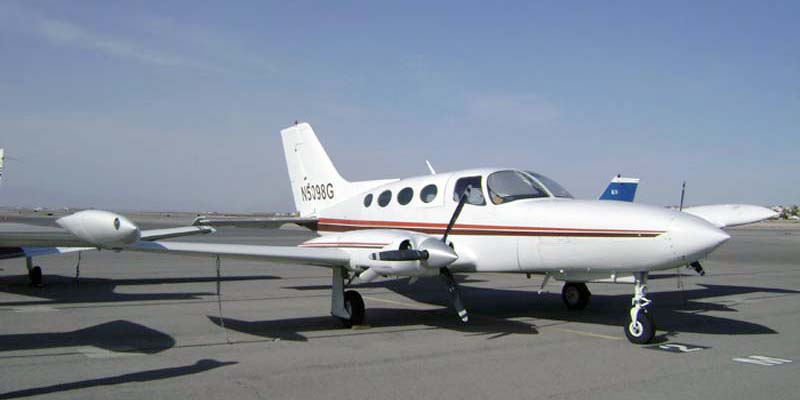

C402A
Photo: Robert Deering 3/30/2010
Henderson Executive Airport (HND)
Henderson, Nevada

The Cessna 401 and 402 are series of 6 to 10 place, light twin, piston engine aircraft. This line was manufactured by Cessna from 1966 to 1985 under the name Utiliner and Businessliner.  All seats are easily removable so that the aircraft can be used in an all-cargo configuration.

Neither the Cessna 401 and 402 were pressurized, nor are they particularly fast for the installed horsepower. Instead, Cessna intended them to be inexpensive to purchase and operate.

The Cessna 401 and 402 were developments of the Cessna 411.  All 401s and 402s are powered by 300 hp (224 kW) turbocharged Continental engines with three-bladed, constant speed, fully feathering propellers. On later models cruise power was limited to 75% to reduce cabin noise. Some aircraft have a propeller synchrophaser to reduce cabin noise and vibration.

The Cessna 401s, 402s, 402As and some 402Bs built from 1966 to 1971 had four small oval windows, which gave the aircraft a similar appearance to the pressurized Cessna 340. Starting half-way through the production of the Cessna 402B the window configuration was changed to the more distinctive five rectangular windows, an arrangement that was retained through the 402C model, until the completion of production in 1987. All 402Bs were equipped with tip-tanks.

SPECIFICATIONS:   (C402C) PERFORMANCE:
Span:  44 ft 2 in (13.45 m) Maximum speed:  230 kts (266 mph, 428 km/h)
Length: 36 ft 5 in (11.09 m) Cruising speed:
Height:  11 ft 6 in (3.49 m) Range:  1,273 nm (1,467 mi, 2,360 km)
Empty Weight:  4,069 lb (1,845 kg) Service ceiling:  26,900 ft (8,200 m)
Gross Weight:  6,865 lb (3,114 kg)
Crew:  One or two plus up to nine passengers
Engines: 2 × Continental TSIO-520-VB turbocharged, fuel-injected piston engines, 325 hp (240 kW) each

SOURCE:  Wikipedia

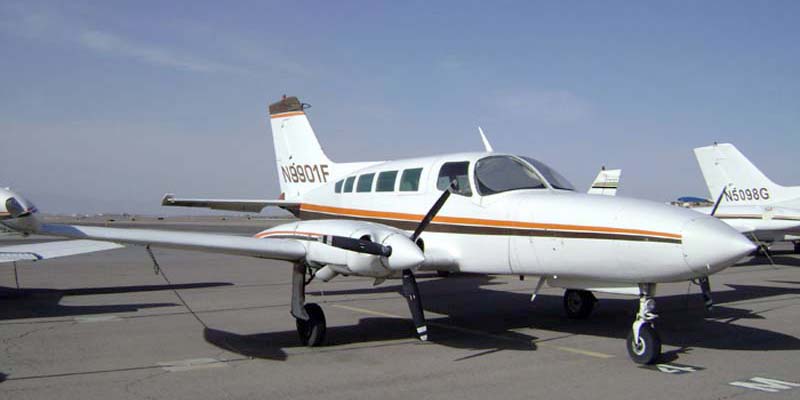

C402B
Photo: Robert Deering 3/30/2010
Henderson Executive Airport (HND)
Henderson, Nevada
