Beechcraft
BE35
Bonanza

Photo: Robert Deering 6/15/2013
Denton Municipal Airport (DTO)
Denton, Texas

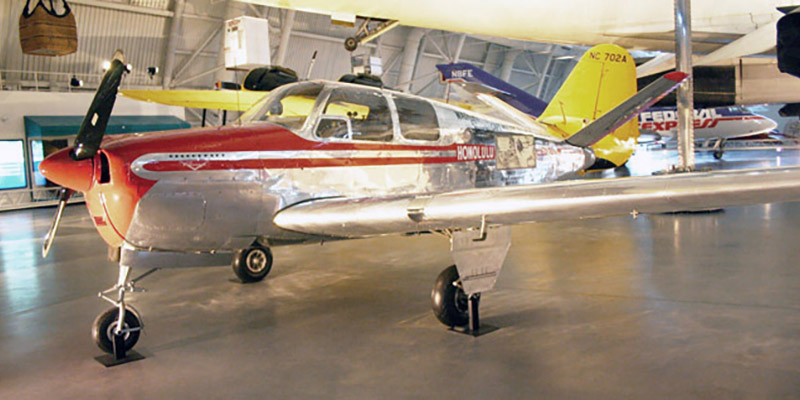

Photo: Robert Deering 11/13/2007
Smithsonian National Air and Space Museum
Dulles International Airport (IAD)

Chantilly, Virginia

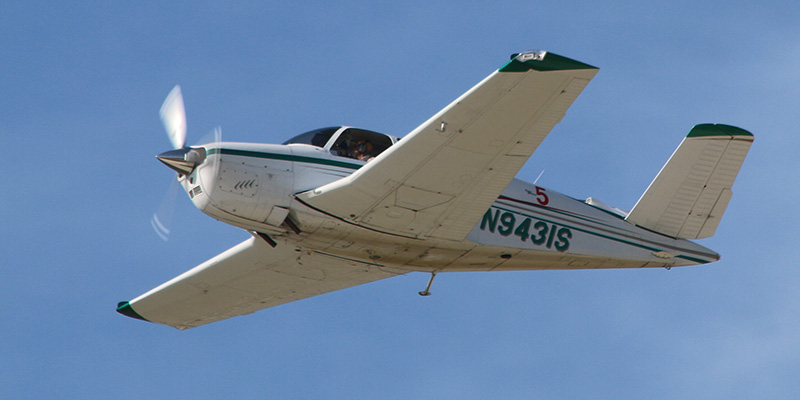

Photo: Robert Deering 10/28/2016
Dallas Executive Airport (RBD)
Dallas, Texas

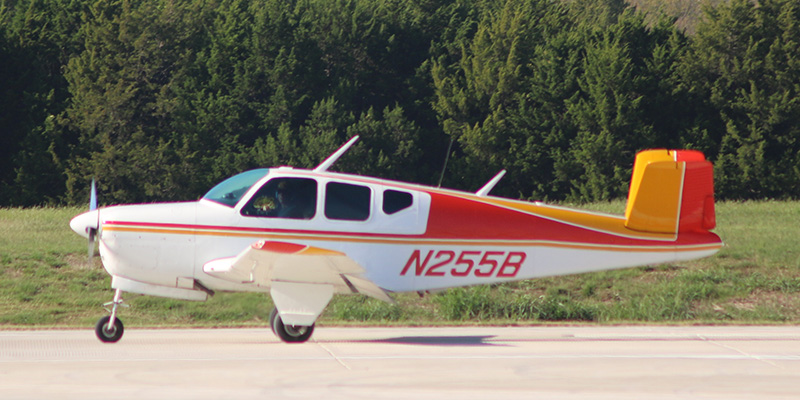

Photo: Robert Deering 10/28/2016
Dallas Executive Airport (RBD)
Dallas, Texas

The Beechcraft Bonanza is an American general aviation aircraft introduced in 1947 by The Beech Aircraft Corporation of Wichita, Kansas. As of 2010, it is still being produced by Hawker Beechcraft, and has been in continuous production longer than any other airplane in history. More than 17,000 Bonanzas of all variants have been built.

At the end of World War II, two all-metal aircraft emerged, the Model 35 Bonanza and the Cessna 195, that represented very different approaches to the premium-end of the postwar civil aviation market. With its high wing, seven-cylinder radial engine, fixed tailwheel undercarriage and roll-down side windows, the Cessna 195 was little more than a continuation of prewar technology; the 35 Bonanza, however, was more like the fighters developed during the war, featuring an easier-to-manage horizontally-opposed six cylinder engine, a rakishly streamlined shape, retractable nosewheel undercarriage (although the nosewheel initially was not steerable, or castering) and low-wing configuration.

Designed by a team led by Ralph Harmon, the model 35 Bonanza was a relatively fast, low-wing monoplane at a time when most light aircraft were still made of wood and fabric. The Model 35 featured retractable landing gear, and its signature V-tail (equipped with a combination elevator-rudder called a ruddervator), which made it both efficient and the most distinctive private aircraft in the sky. The prototype 35 Bonanza made its first flight on 22 December 1945, with the first production aircraft debuting as 1947 models. The first 30–40 Bonanzas produced had fabric-covered flaps and ailerons, after which, those surfaces were covered with magnesium alloy sheet.

In 1982 the production of the V-tail Bonanza stopped but the conventional-tail Model 33 continued in production until 1995. Still built today is the Model 36 Bonanza, a longer-bodied, straight-tail variant of the original design, introduced in 1968.

SPECIFICATIONS: PERFORMANCE:
Span:  33 ft 6 in (10.21 m) Maximum speed:
Length:  27 ft 6 in (8.38 m) Cruising speed:  176 kn (203 mph; 326 km/h)
Height:  8 ft 7 in (2.62 m) Range:  221 nmi (254 mi; 409 km) with full passenger load
Empty Weight:  2,517 lb (1,142 kg) Service ceiling:  18,500 ft (5,600 m)
Gross Weight:  3,650 lb (1,656 kg)
Crew:  Pilot and five passengers
Engines:  1 × Continental IO-550-B , 300 hp (220 kW)

SOURCE:  Wikipedia
