Aeronca
L-3 / O-58
Grasshopper
Previous U.S. MILITARY Next

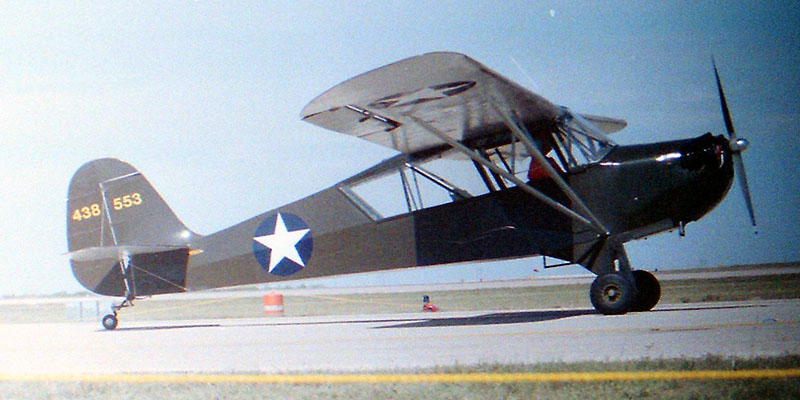

Photo: Robert Deering 1991
Midland International Airport (MAF)

Midland, Texas

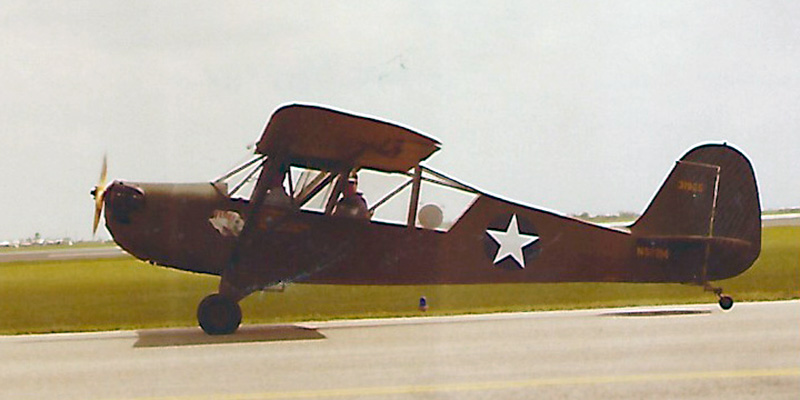

Photo: Robert Deering 1981
Valley International Airport (HRL)
Harlingen, Texas

The L-3, originally designated O-58, was the military version of the Aeronca Model 65 Defender. This high-wing, light airplane could operate from small, hastily-built flying fields. The Army ordered the first O-58s in 1941 to test the use of light aircraft for liaison and observation missions in direct support of ground forces. Between 1941 and 1943, Aeronca Aircraft Corp. of Middletown, Ohio, built more than 1,400 of these aircraft for the Army -- 875 of them were L-3Bs.

During World War II, Aeronca L-3s joined similar "Grasshoppers" in artillery fire direction, courier service, front-line liaison and pilot training. In 1942 Aeronca developed the TG-5, a training glider based on the O-58. The three-seat glider had a front fuselage replacing the engine, but retained the rear fuselage, wings and tail of the powered version. Aeronca built 250 TG-5s for the Army.

Built during WWII, the L-3B on display found its way into private hands as surplus after the war. Completely restored by its previous owner, Paul Grice of Waynesville, Ohio, the airplane was flown to the museum in 1984.
SPECIFICATIONS: PERFORMANCE:
Span:  35 ft. Maximum speed:  87 mph
Length:  21 ft. Cruising speed:  79 mph
Height:  7 ft. 8 in. Range:  199 miles
Empty Weight:  Service ceiling:  7,750 ft.
Gross Weight:  1,300 lbs. maximum
Crew:
Engines:  One Continental O-170-3 of 65 hp
Armament:  None

SOURCE:  National Museum of the United States Air Force

Photo: Robert Deering 10/18/2012
National Museum of the USAF
Wright-Patterson AFB (FFO)

Dayton, Ohio
